Basic Ratings

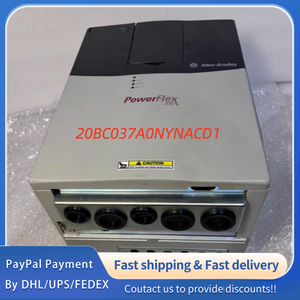

Model Series: Allen‑Bradley PowerFlex 700 AC Variable Frequency Drive
Nominal Power: 25 HP (18.5 kW, Normal Duty); 20 HP (15 kW, Heavy Duty)
Input Voltage/Frequency: 400 V AC, 3‑Phase, 50/60 Hz
Rated Input Current: 37 A
Continuous Output Current: 37 A (Normal Duty), 30 A (Heavy Duty)
Output Voltage: 0‑400 V AC, 3‑Phase (variable, matching input)
Output Frequency Range: 0‑400 Hz (programmable)
Frame Size: 20B (Frame 2)
Enclosure & Mechanical
Enclosure Type: IP20 (NEMA 1) with conformal coating, blank plate (no HIM)
Cooling Method: Forced Air Cooling
Mounting Type: Floor/Panel Mount
Brake Configuration: Brake IGBT installed (no drive‑mounted brake resistor)
EMC Filter: CE filter + common mode choke (second environment filter)
Control & Operation
Control Modes: Vector Control (standard); V/Hz, Sensorless Vector (optional)
Speed Regulation (Vector, Closed‑Loop with Feedback): ±0.01% of rated speed
Acc/Dec Time: 0.1‑3600 sec (adjustable, separate acceleration/deceleration)
Torque Boost: 0‑30% (manual/auto low‑speed torque compensation)
Skip Frequencies: Up to 8 programmable points
Programming Interfaces: RSLogix 500/5000, PowerFlex Toolbox (no local keypad)
I/O Voltage: 24 V DC (configurable)
Communication (Key Difference from ACD0)
Built‑in Protocol: DeviceNet (ACD1 suffix indicates a specific DeviceNet variant, typically with different protocol settings or enhanced communication functions compared to ACD0)
No additional communication modules (factory default)
I/O Interfaces
Digital Inputs: 6 × 24 V DC (configurable)
Digital Outputs: 3 × Relay (2 A @ 240 V AC/30 V DC)
Analog Inputs: 2 × (0‑10 V DC/4‑20 mA, selectable)
Analog Outputs: 1 × (0‑10 V DC/4‑20 mA, selectable)
Protection Features
Overcurrent protection (motor/drive, instantaneous/time‑delayed)
DC bus overvoltage/undervoltage protection
Internal drive & motor overtemperature protection (PTC thermistor input)
Ground fault protection
Motor locked rotor protection
Short circuit protection (200% rated current, momentary)
Input line surge suppression (built‑in)
Environmental Ratings
Operating Temperature: 0°C‑40°C (32°F‑104°F); 1% derate/°C above 40°C (up to 50°C)
Storage Temperature: -40°C‑70°C (-40°F‑158°F)
Relative Humidity: 5%‑95% RH (non‑condensing)
Altitude: Up to 1000 m (3280 ft); 1% derate/100 m above 1000 m (up to 3000 m)
Vibration Resistance: 5‑2000 Hz, 2 g (operational); 5 g (non‑operational)
Compliance & Certifications
UL Listed (UL 508C)
CSA Certified (CSA C22.2 No. 14‑19)
CE Marked (LVD, EMC Directive)
RoHS Compliant
IEC 61800‑3 EMC Certified
