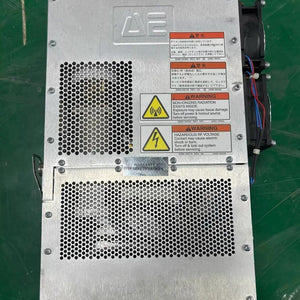

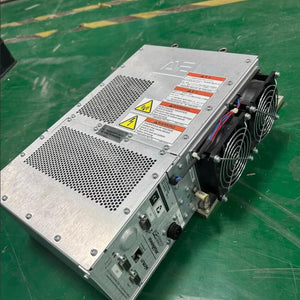

1 PCS AE RF Navigator 1013 (P/N 3155126-020)#LYQ007
1 PCS AE RF Navigator 1013 (P/N 3155126-020)#LYQ007
| Parameter Category | Parameter | Specification |
|---|---|---|
| General | Model Number | 1013 (Navigator 1013) |
| Part Number | 3155126-020 | |
| Manufacturer | Advanced Energy (AE) | |
| Type | RF Automatic Matching Network | |
| Electrical | Nominal Frequency Range | 13.56 MHz (±5% typical) |
| Power Handling Capability | Up to 400 W (typical, application-dependent) | |
| Input Voltage | Dependent on host system / RF Generator | |
| Impedance Range | 50 Ω system (standard); automatic matching via motor-driven tuners | |
| Mechanical | Weight | Approx. 6.0 kg (typical for Navigator 1013 series) |
| Form Factor | Chassis-mount (chamber-mounted design) | |
| Dimensions | Customary to chamber integration (refer to mechanical drawing for exact LxWxH) | |
| Control & Interface | Control Interface | RS-232 (standard); optional networking for system integration |
| Tuning Mechanism | Microprocessor-controlled stepper motor drives | |
| Features | Fast, automated matching; real-time impedance monitoring (optional Z’Scan II) | |
| Certifications & Standards | Safety & Compliance | CE, IEC, UL (per regional application standards) |
| Application Focus | Semiconductor Etch, PECVD, PVD, Chamber Clean processes |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
