Parameter Category    Parameter Details

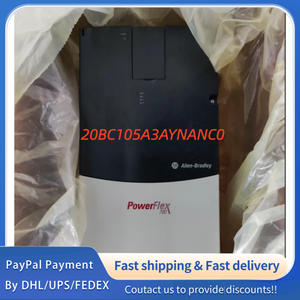

Model Identification    Catalog Number: 20BC105A3AYNANC0
Series: Allen‑Bradley PowerFlex 700 AC Drive
Power & Electrical Ratings    Input Voltage: 3‑Phase, 380–480 V AC, 50/60 Hz
Output Current: 105 A
Nominal Power (400V): 55 kW (75 HP) Normal Duty, 45 kW (60 HP) Heavy Duty
Output Voltage: 0–Input Voltage, 3‑Phase
Output Frequency: 0–400 Hz
Control Modes    V/Hz Control, Sensorless Vector Control, Force Technology Field‑Oriented Control (with/without encoder feedback)
Integrated PID Controller
Operational Limits    Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
Ambient Temperature (Operating): 0–40 °C (32–104 °F), derate above 40 °C
Relative Humidity: 5–95% (non‑condensing)
Physical Specifications    Enclosure Type: NEMA/UL Type 1 (IP20)
Cooling Method: Forced Air
Conformal Coating: Included
Dynamic Braking Transistor: Included
Weight: Approx. 78 kg (172 lbs)
Dimensions (H×W×D): 855 mm × 360 mm × 305 mm (33.66 in × 14.17 in × 12.01 in)
Communication & I/O    Standard: RS‑485 (Modbus RTU)
Integrated Communication: EtherNet/IP (from “Y” code)
Digital I/O: Configurable inputs/outputs
Analog I/O: Configurable inputs/outputs
Protection & Certifications    Overvoltage, Undervoltage, Overcurrent, Thermal Overload, Short Circuit, Ground Fault Protection
UL Listed, CE Certified, CSA Certified, RoHS Compliant
Conformal Coating for Enhanced Environmental Protection
