Parameter    Details

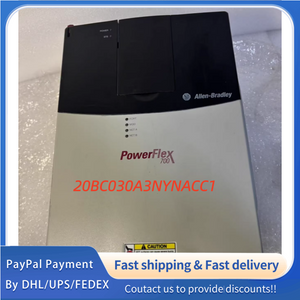

Model    20BC030A3NYNACC1
Product Line    Allen‑Bradley PowerFlex 700 AC Drive
Voltage Class    480V AC, 3‑Phase
Rated Power    15 kW / 20 HP
Input Current    30 A
Output Current    30 A
Output Frequency    0‑400 Hz
Control Mode    V/Hz, Sensorless Vector, Closed‑Loop Vector (optional)
Enclosure Type    NEMA 1 / IP21
Cooling Method    Forced Air Cooling
Power Factor    ≥0.95 (at rated load)
Efficiency    Typically ≥96% (at full load)
Overload Capacity    150% for 60 seconds, 200% for 3 seconds
Communication    Built‑in EtherNet/IP, RS‑485 (Modbus RTU)
I/O Configuration    Digital Inputs: 6 (configurable); Digital Outputs: 2 (relay, configurable); Analog Inputs: 2 (0‑10V DC / 4‑20mA); Analog Outputs: 1 (0‑10V DC / 4‑20mA)
Motor Compatibility    Induction Motors, Permanent Magnet Motors (optional)
Protection Features    Overcurrent, Overvoltage, Undervoltage, Overheating, Motor Short Circuit, Ground Fault, Phase Loss
Mounting Type    Floor Mount / Panel Mount
Operating Temperature    ‑10 °C to +50 °C (14 °F to 122 °F)
Storage Temperature    ‑40 °C to +70 °C (‑40 °F to 158 °F)
Altitude Rating    Up to 1000 m (3280 ft) without derating, derate 1% per 100 m above 1000 m
Compliance    UL, cUL, CE, RoHS, IEC 61800‑3

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
