Core Drive Parameters
Parameter    Value

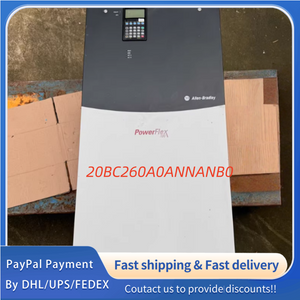

Model Number    20BC260A0ANNANB0
Product Series    PowerFlex 700 AC Variable Frequency Drive (VFD)
Nominal Output Current    260 A
Rated Voltage    400 V AC, 3‑Phase
Rated Power    132 kW (180 HP) @ 400V 50Hz; 125 HP (93 kW) @ 480V 60Hz
Input Frequency Range    50/60 Hz ±10%
Output Frequency Range    0 – 400 Hz
Control Modes    V/Hz, Sensorless Vector, Optional Closed‑Loop Vector
Overload Capacity    150% for 60s, 200% for 3s (@ 400V nominal)
Switching Frequency    2 – 16 kHz (User‑Adjustable)
Conformal Coating    Yes (Humidity/Dust/Corrosion Protection)
HIM (Human Interface Module)    None (Blank Cover)
Brake IGBT    No (No dynamic braking circuit)
Built‑in Communication    DeviceNet (CAN‑based network, 500 kbps max data rate)
Electrical Parameters
Parameter    Value
Input Voltage Range    380 – 480 V AC, 3‑Phase
Full Load Input Current    265 A
Output Voltage    0 – Line Input Voltage (3‑Phase PWM Sine Wave)
Power Factor (Full Load)    >0.95
Efficiency (Full Load @ 400V)    ≥96%
Input/Output Phase    3‑Phase / 3‑Phase
DC Bus Voltage (Typical)    540 – 650 V DC (@ 400V AC Input)
Isolation Voltage    2500 V AC (Input‑Output/Ground)
Brake Circuit    Not Supported
Control Power Supply    24V DC (Optical Isolation)
Insulation Class    Class B (130°C)
Mechanical & Physical Parameters
Parameter    Value
Enclosure Type    IP20 / NEMA 1 Chassis (Panel Mount)
Cooling Method    Forced Air Cooling (Internal Centrifugal Fan)
Mounting Type    Panel Mount (Vertical Installation Only)
Terminal Block Type    Screw Terminals (Power); Spring Terminals (Signal/I/O)
Conformal Coating    Polyurethane Coating (PCB & Internal Components)
Vibration Mounting    M6/M8 Mounting Bolts (Torque Spec: 25 N·m)
