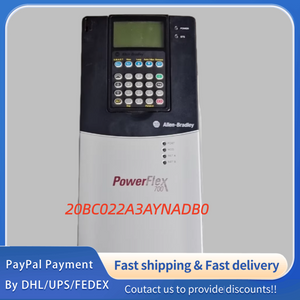

Basic Model Info    Model Series    PowerFlex 700 AC Drive
Power Rating    Continuous Power (HP)    20 HP
Continuous Power (kW)    15 kW
Input Voltage/Phase    Rated Input Voltage    480 V AC, 3-Phase
Input Voltage Range    380-480 V AC (3-Phase)
Input Frequency    50/60 Hz ± 5%
Output Specifications    Output Current (Continuous)    22 A
Output Frequency Range    0-400 Hz
Output Voltage    0 to Input Voltage
Output Phases    3-Phase
Control Modes    Standard Control    V/Hz, Sensorless Vector (SLV)
Optional Control    Closed-Loop Vector (CLV), Torque Control
Power Characteristics    Efficiency    Typically ≥96% (at full load)
Power Factor    ≥0.95 (at full load, with active front end optional)
Protection Features    Overcurrent Protection    Yes, adjustable trip levels
Overvoltage Protection    Yes, DC bus monitoring
Undervoltage Protection    Yes, DC bus monitoring
Thermal Protection    Internal IGBT, motor overload (PTC input supported)
Short Circuit Protection    Type 2 (per IEC 61800-3)
Mechanical Specifications    Enclosure Type    NEMA 1 / IP21 (standard, "A" in model code)
Mounting    Panel Mount (surface)
Cooling    Cooling Method    Forced Air (internal fan)
Environmental Ratings    Operating Temperature    -10°C to +40°C (14°F to 104°F); derate to +50°C (122°F)
Storage Temperature    -40°C to +70°C (-40°F to 158°F)
Humidity    5-95% RH, non-condensing
Altitude    0-1000 m (3280 ft) at rated temp; derate 1% per 100 m above 1000 m
Communication    Standard Communication    RS-485 (Modbus RTU)
Optional Communication    DeviceNet, EtherNet/IP, ControlNet, Profibus DP
I/O Interfaces    Digital Inputs    6 standard (configurable), 2 optional
Digital Outputs    2 standard (relay), 1 optional (transistor)
Analog Inputs    2 standard (0-10 V DC / 4-20 mA), configurable
Analog Outputs    1 standard (0-10 V DC / 4-20 mA), configurable
Relay Outputs    2 Form A (NO), 1 Form C (NO/NC) standard
Certifications    Global Certifications    UL, cUL, CE, C-Tick, ATEX (optional), IECEx (optional)
