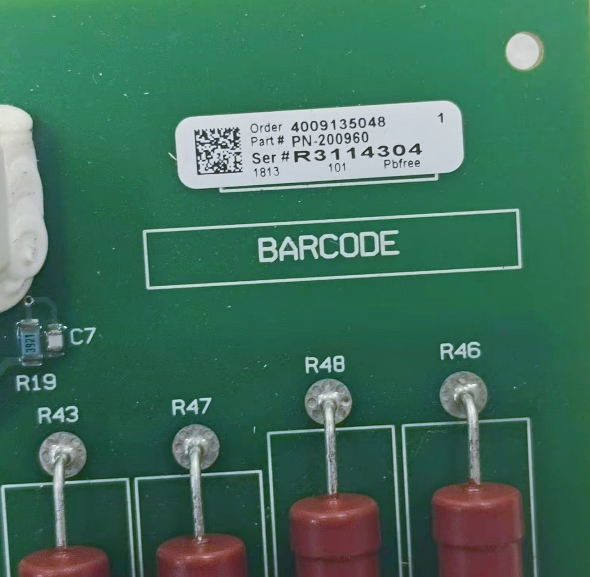

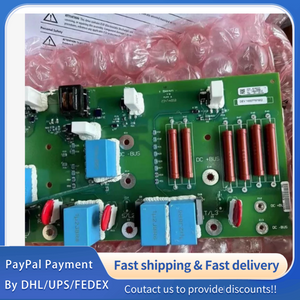

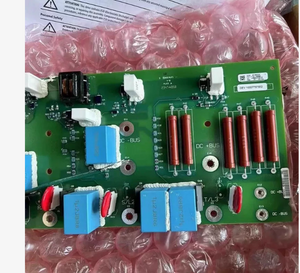

1PC BRAND NEW PN-200960 Allen-Bradley PCB circuit board the pre-charging/power interface board of Allen-Bradley (AB) PowerFlex 750 series#QYM001 J1688
1PC BRAND NEW PN-200960 Allen-Bradley PCB circuit board the pre-charging/power interface board of Allen-Bradley (AB) PowerFlex 750 series#QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 753/755 series (e.g., 20G11NC011JA0NNNNN), corresponding to power range 15–150kW (subject to the main model) |
| Core Functions | DC bus pre-charging control, DC bus voltage monitoring, power module interface management, fault interlock and undervoltage protection |
| Power Supply | Main circuit: 3-phase 380–480V AC; Control power supply: DC 24V (derived from the main control board); Pre-charging power ≤ 1kW |
| Interface Configuration | 3-phase AC input terminals, DC bus output, pre-charging contactor control interface, fault alarm contacts (NC/NO selectable) |
| Protection Functions | Pre-charging overcurrent protection, bus overvoltage/undervoltage protection, reverse connection protection, compliant with IEC 61800-5-1 |
| Environment & Structure | Operating temperature: 0–40℃; PCB material: FR-4; Protection class: IP20 (cabinet mounting) |
| Physical Specifications | Dimensions: approx. 180×120×30mm; Weight: approx. 250g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
