1PC NEW PN-200917 Allen-Bradley Gate Driver Board, specifically designed for PowerFlex 750-series AC drives (focused on 753/755 models with 15–75 kW power ratings) #QYM001 J1688
1PC NEW PN-200917 Allen-Bradley Gate Driver Board, specifically designed for PowerFlex 750-series AC drives (focused on 753/755 models with 15–75 kW power ratings) #QYM001 J1688
| Parameter | Technical Value |
|---|---|

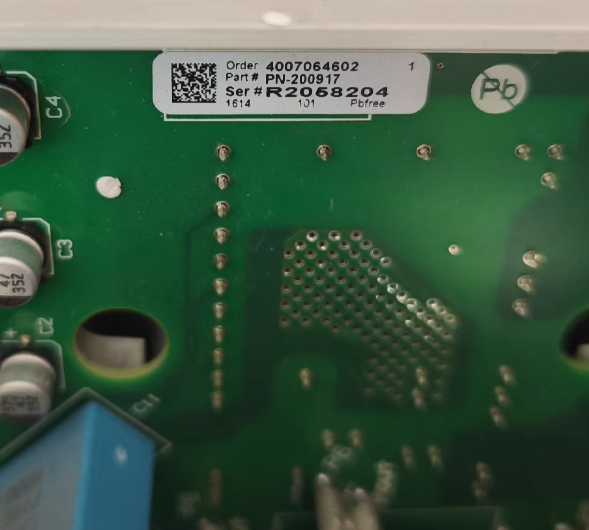

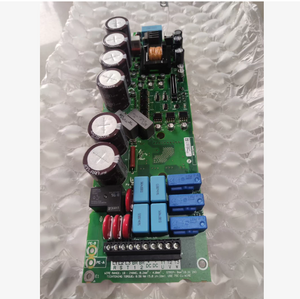

| Part Number | PN-200917 AB |
| Product Type | Gate Driver Board (IGBT Driver Module) |
| Primary Compatibility | PowerFlex 753/755 AC Drives (15–75 kW, 400–480 VAC, 50/60 Hz) |
| Logic Power Supply | 24 VDC (±10% tolerance), 0.8 A max current draw |
| Gate Drive Output | 6 channels (3-phase inverter bridge configuration); 15 V gate drive voltage |
| IGBT Compatibility | 1200 V / 50 A IGBT modules (standard for mid-range PowerFlex 750 drives) |
| Isolation Rating | 3000 VAC (gate drive circuits to logic control circuit); 2500 VAC (channel-to-channel isolation) |
| Protection Features | Overcurrent detection (desaturation protection for IGBTs); overtemperature monitoring; short-circuit protection; under-voltage lockout (UVLO) |
| Feedback Signals | IGBT temperature feedback (NTC thermistor input); drive fault status signals to MCB |
| Communication Interface | Drive Local Bus (DLB) for real-time data exchange with main control board |
| Operating Temperature | 0–60°C (32–140°F); Storage Temperature: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non-condensing |
| Vibration Resistance | 5–500 Hz, 2 g RMS (operational); 10 g RMS (non-operational) |
| Mounting Type | Drive-chassis integrated mount (fits PowerFlex 753/755 inverter cabinets; not standalone DIN-rail compatible) |
| Certifications | CE, UL Listed, cUL Certified, RoHS 2 Compliant |
