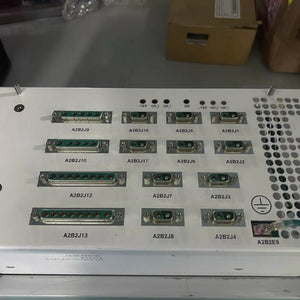

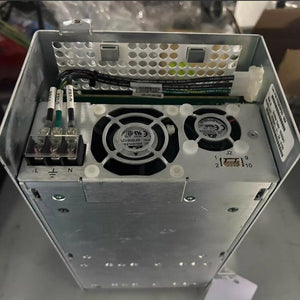

1 PCS used LAM FEEDERPSU-004 Power Module #LYQ007
1 PCS used LAM FEEDERPSU-004 Power Module #LYQ007
| Parameter | Details |
|---|---|
| Model | FEEDERPSU-004 |
| Type | Quad Feeder Power Supply Module |
| Input Voltage | 200-240 VAC, 50/60 Hz |
| Input Current | 10 A (Max) |
| Output Channels | 4 Independent Outputs |
| Output Voltage (Each) | 24 VDC |
| Output Current (Each) | 10 A (Max) |
| Total Output Power | 960 W |
| Efficiency | 88% (Typical) |
| Ripple & Noise | 120 mV (Max, Peak-to-Peak) |
| Voltage Regulation | ±1% |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% - 95% (Non-Condensing) |
| Cooling Method | Forced Air Cooling |
| Protection Features | Over Voltage, Over Current, Over Temperature, Short Circuit |
| Safety Approvals | UL 60950-1, CSA 22.2 No. 60950-1, CE |
| Dimensions (W x D x H) | 330 mm x 280 mm x 85 mm |
| Weight | 3.2 kg |
| MTBF | 250,000 Hours (at 25°C, Full Load) |
| Application | Lam Research Semiconductor Equipment |
