Parameter Category    Item    Specification
Basic Information    Brand    Allen‑Bradley (Rockwell Automation)

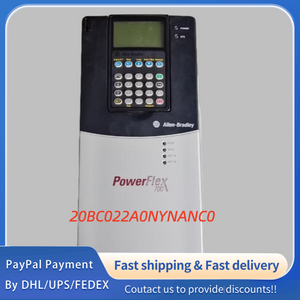

Product Line    PowerFlex 700 AC Variable Frequency Drive
Model Number    20BC022A0NYNANC0
Frame Size    Size 1
Control Mode    Sensorless Vector Control / V/Hz Control (Selectable)
Operator Interface    Blank Plate (No HIM Installed)
Communication    No Built‑in Communication Module (Optional Fieldbus Expansion)
Electrical Ratings - Input    Voltage Rating    400V AC, 3‑Phase, 50/60Hz
Voltage Range    380‑480V AC (3‑Phase)
Input Current    26A (at 480V AC)
Electrical Ratings - Output    Continuous Output Current    22A
Short‑time Output Current    24.2A (1 min) / 33A (3 sec)
Power Rating    11kW (15HP) Normal Duty / 7.5kW (10HP) Heavy Duty
Output Voltage    0‑Input Line Voltage, 3‑Phase PWM
Output Frequency Range    0‑400Hz (Adjustable, Max 420Hz)
Overload Capacity    150% for 60s / 200% for 3s
Core Electrical Components    Brake IGBT    Integrated (No internal brake resistor, external required)
EMC Filter    2nd Environment Filter (CE EMC Compliant)
Conformal Coating    None
Power Factor    >0.95 (at full load)
Efficiency    ≥96% (typical at rated load)
I/O Configuration    Digital Inputs    6 programmable (24V DC, opto‑isolated)
Digital Outputs    3 programmable (relay contact, Form C, 10A/250V AC)
Analog Inputs    2 (0‑10V DC / 4‑20mA, selectable)
Analog Outputs    1 (0‑10V DC / 4‑20mA, programmable)
Communication Interfaces    Built‑in Communication    None (Blank Plate for Communication Module Slot)
Auxiliary Communication    RS485 (Modbus RTU) Available via Expansion
