Category    Parameter    Details

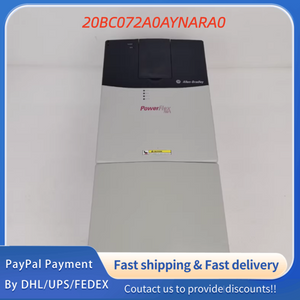

Model Identification    20BC072A0AYNARA0    PowerFlex 700 AC Drive, Frame 4, IP20, conformal coating, no pre‑installed communication module, no HIM
Power Ratings    Normal Duty    37 kW (50 HP), 72 A continuous output current
Heavy Duty    30 kW (40 HP), 60 A continuous output current
Input Power    Voltage    3‑phase, 380–480 VAC (400 VAC nominal)
Frequency    50/60 Hz
Phase Number    3‑phase
Output Power    Voltage    0–480 VAC (3‑phase, variable frequency and voltage)
Current    72 A (continuous, Normal Duty)
Frequency Range    0.1–420 Hz (maximum frequency)
Enclosure & Protection    Protection Class    IP20 (NEMA Type 1, indoor use only)
Frame Size    4
Conformal Coating    Yes (protects against dust, humidity and mild chemical contaminants)
Control Features    Control Modes    V/Hz, Sensorless Vector Control, Vector Control (with feedback option)
Digital I/O    6 digital inputs, 3 digital outputs
Analog I/O    2 analog inputs (0–10 VDC/4–20 mA), 1 analog output (0–10 VDC/4–20 mA)
Communication    No pre‑installed module; optional slot for DeviceNet/ControlNet/EtherNet/IP modules
Safety & Protections    Standard Protections    Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Ground Fault, Motor Thermal Protection
Brake System    Brake IGBT installed (dynamic braking support, external resistor required)

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
