Key Technical Specifications (English)
Category    Parameter    Details

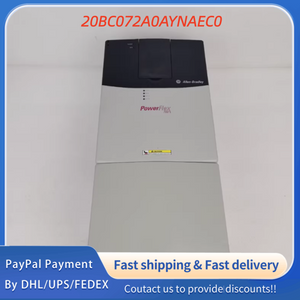

Model    20BC072A0AYNAEC0    PowerFlex 700 AC Drive, Frame 4, IP20, conformal coating, ControlNet module, no HIM
Power Ratings    Normal Duty    37 kW (50 HP), 72 A
Heavy Duty    30 kW (40 HP), 60 A
Input Power    Voltage    3‑phase, 380–480 VAC (400 VAC nominal)
Frequency    50/60 Hz
Phase    3‑phase
Output Power    Voltage    0–480 VAC (3‑phase, variable)
Current    72 A (continuous, Normal Duty)
Frequency    0.1–420 Hz (max.)
Enclosure    Protection Class    IP20 (Type 1)
Frame Size    4
Conformal Coating    Yes
Control Features    Control Mode    V/Hz, Sensorless Vector, Vector (with feedback)
Digital I/O    6 inputs, 3 outputs
Analog I/O    2 inputs (0–10 VDC/4–20 mA), 1 output (0–10 VDC/4–20 mA)
Communication    ControlNet module (EC code), supports CIP, explicit messaging
Protections    Standard    Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Ground Fault, Motor Thermal Protection
Brake IGBT    Installed (for dynamic braking)
