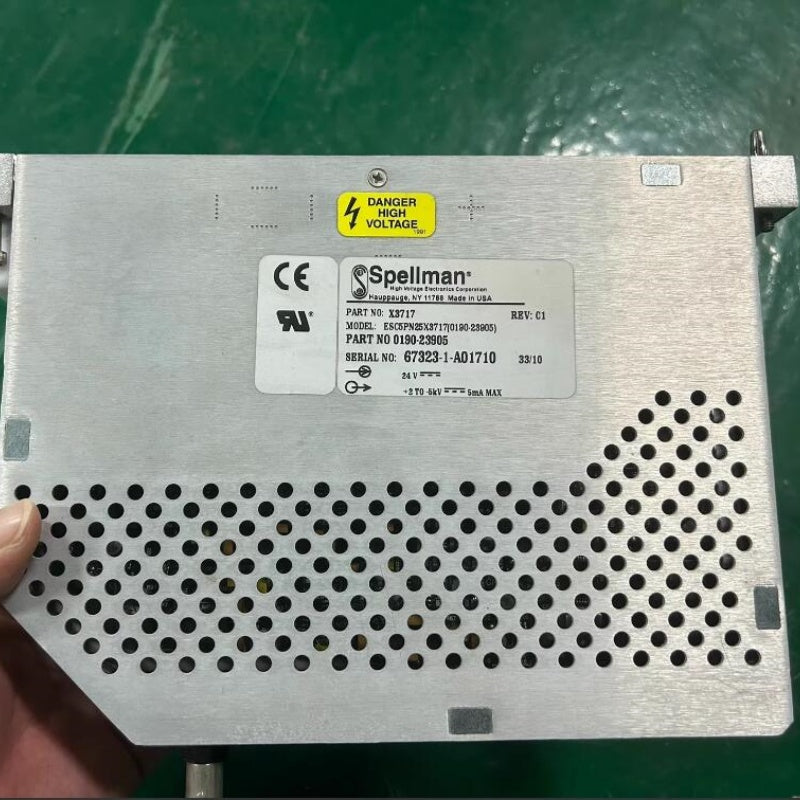

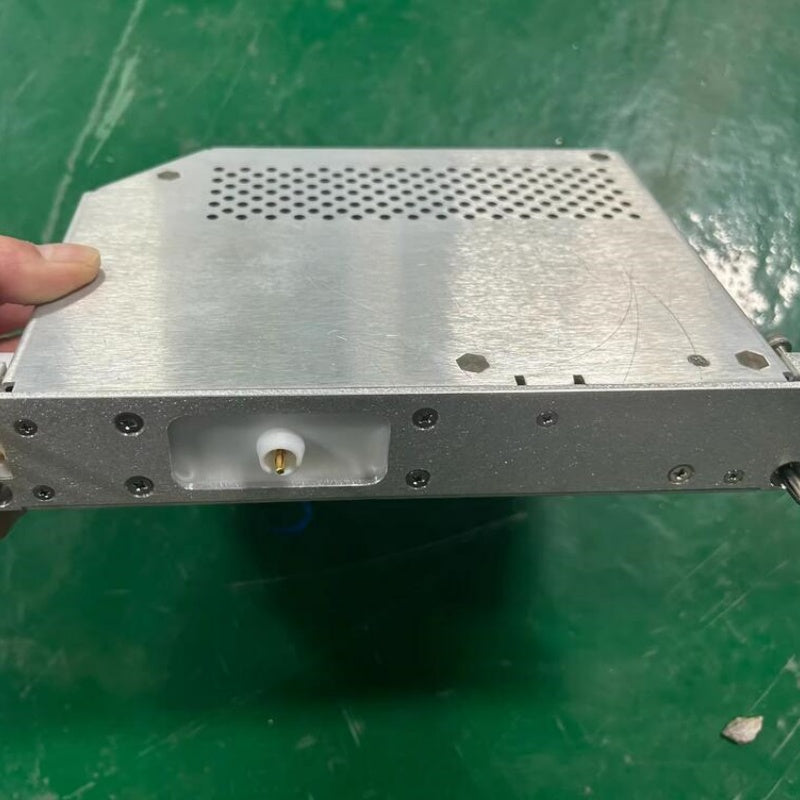

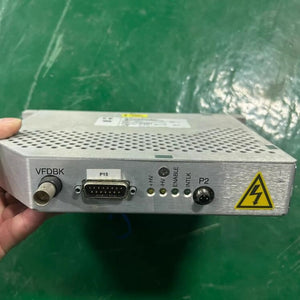

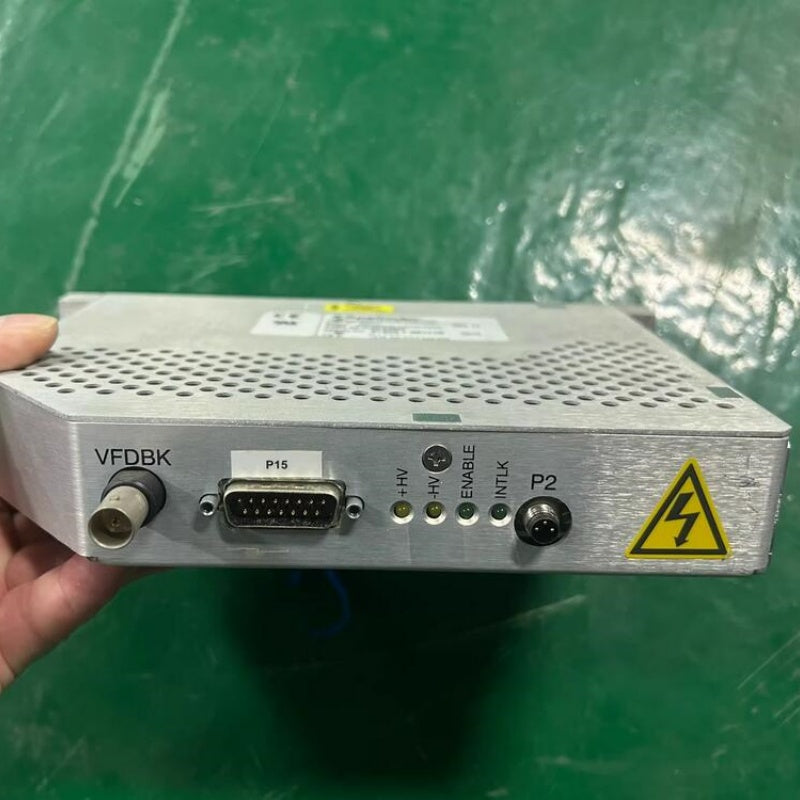

1 pcs used Spellman ESC5PN25X3717 power supply module #LYQ007
1 pcs used Spellman ESC5PN25X3717 power supply module #LYQ007
| Parameter | Specifications |
|---|---|
| Output Configuration | Single ground-referenced high voltage output, reversible polarity (positive or negative) |
| Input Voltage | +24 VDC, ±5% |
| Input Current | Max. 2 A |
| Output Voltage Range | +2 kV to -5 kV |
| Output Current | 2 mA @ +2 kV; 5 mA @ -5 kV |
| Short Circuit Current Limit | Max. 5.5 mA |
| Output Isolation | None; ground-referenced output |
| Slew Rate | Typical 80 ms |
| Max. Cycling Frequency | 10 cycles/second |
| Overshoot | < 10% of set point |
| Ripple | 10 V RMS |
| Line Regulation | ±0.7% (over specified input range) |
| Load Regulation | ±0.7% (over specified load range) |
| Output Voltage Accuracy | < 2% of setting (50–5000 VDC) |
| Program/Monitor Accuracy | 1% of full scale, ±50 mV |
| Dimensions | 9.0" W × 1.5" H × 6.1" L (228.6 × 30.5 × 155 mm) |
| Weight | 4.5 lbs (2.0 kg) |
| Construction | Compact, lightweight OEM module |
| Protection Features | Comprehensive fault diagnostics, HV safety interlock |
| Manufacturer | Spellman High Voltage Electronics Corporation |
| Country of Origin | USA |
| Equivalent Part Number | AMAT 0190-23905 |
