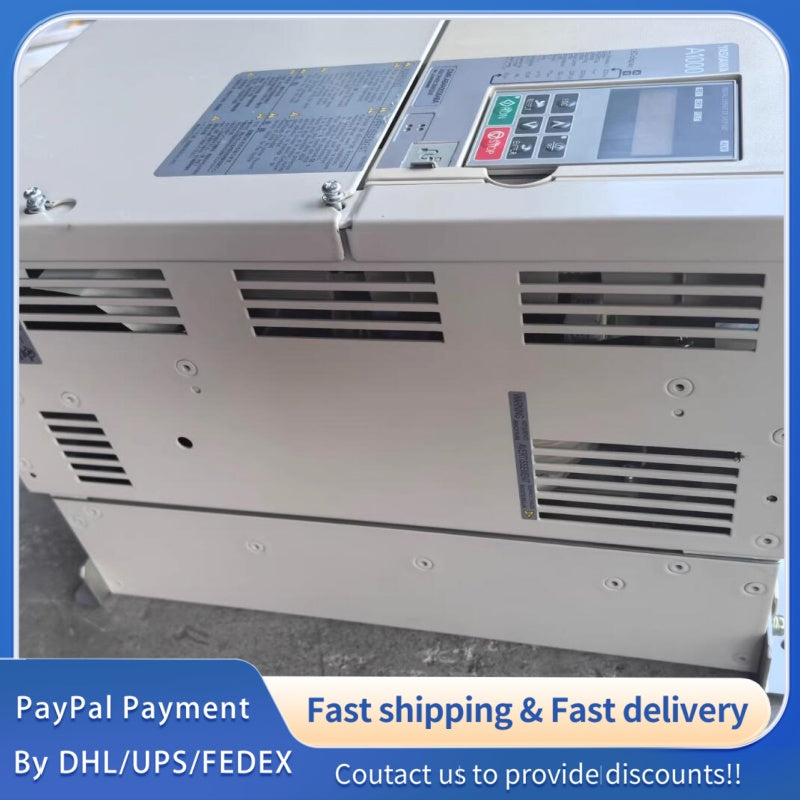

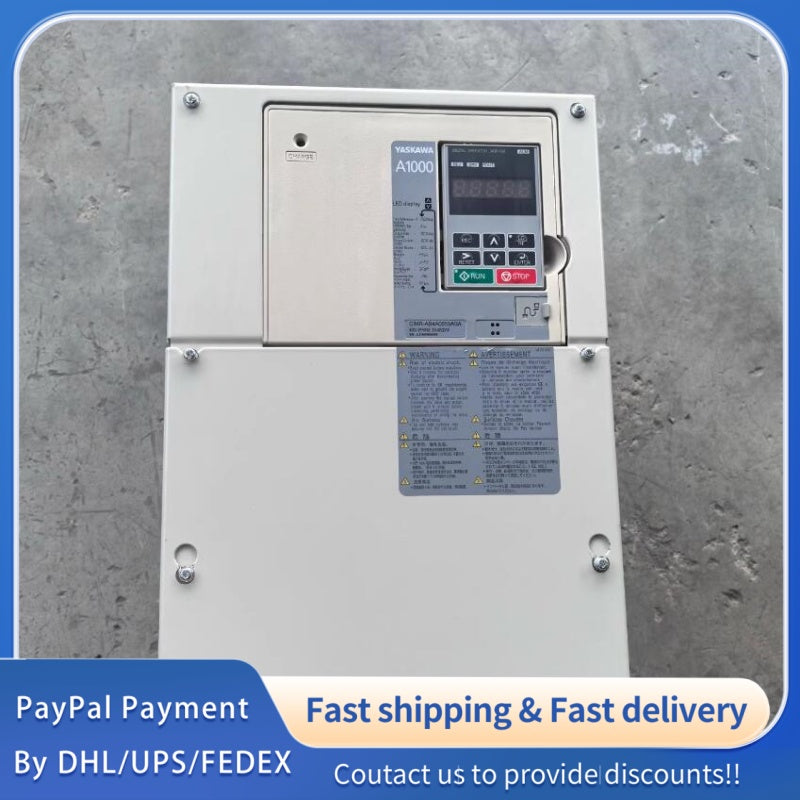

1PCS USED YASKAWA CIMR-AB4A0058ABA Inverter (A1000 Series)#LYQ007
1PCS USED YASKAWA CIMR-AB4A0058ABA Inverter (A1000 Series)#LYQ007
| Item | Specification |
|---|---|

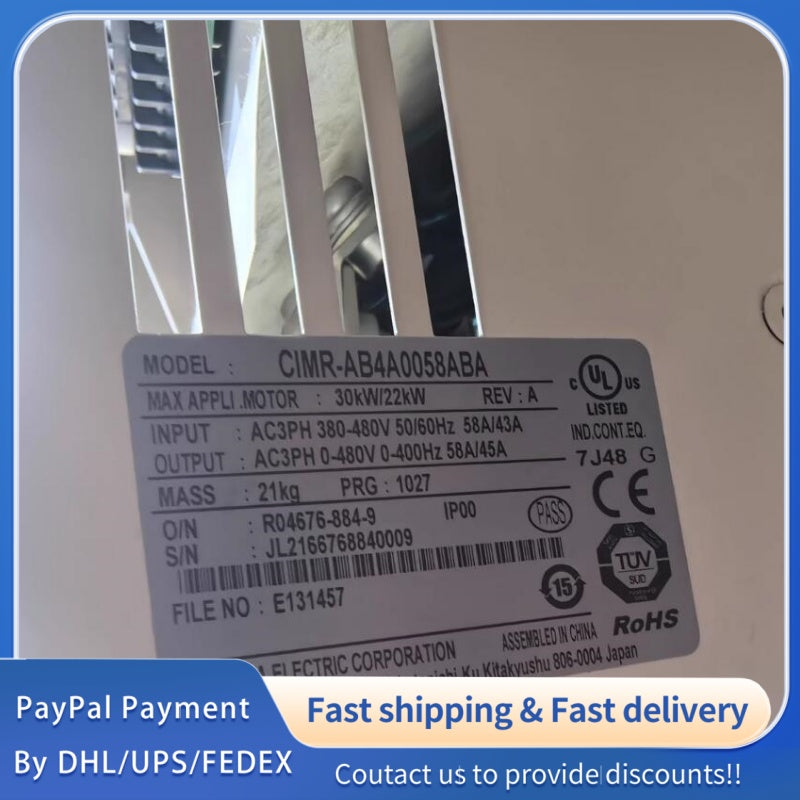

| Model | CIMR-AB4A0058ABA |
| Series | A1000 High Performance Vector Control Drive |
| Input Power | 3-phase AC 380–480 V, 50/60 Hz; DC 510–680 V |
| Input Voltage Tolerance | -15% to +10% |
| Input Frequency Tolerance | ±5% |
| Output Power (ND/HD) | 30 kW / 22 kW |
| Rated Output Current (ND/HD) | 58 A / 45 A |
| Max Output Voltage | 3-phase 0–480 V (matches input voltage) |
| Output Frequency Range | 0.01–400 Hz |
| Frequency Resolution | Digital: 0.1 Hz; Analog: 0.03 Hz/60 Hz (11-bit) |
| Control Modes | V/f, V/f with PG, Open/Closed Loop Vector (IM/PM) |
| Starting Torque | 200% at 0.3 Hz (Open Loop Vector) |
| Protective Enclosure | IP20 (NEMA 1) |
| Ambient Temp | -10°C to +50°C (chassis); -10°C to +40°C (zero clearance) |
| Certifications | UL, CSA, CE, C-Tick, RoHS |
| Standard I/O | 8×DI (24 VDC), 3×AI (0–±10 VDC / 4–20 mA), 1×PI, 1×Fault Relay (Form C), 3×Relay Outputs (Form A), 2×AO (0–±10 VDC / 4–20 mA) |
| Communication | RS-485 (Modbus RTU); optional fieldbuses (DeviceNet, PROFIBUS, etc.) |
| Built-in Functions | PID, Energy Saving, Multi‑speed, Auto Torque Boost, Safe Torque Off (SIL2, PLd, Cat.3) |
| Weight | Approx. 12.5 kg |
