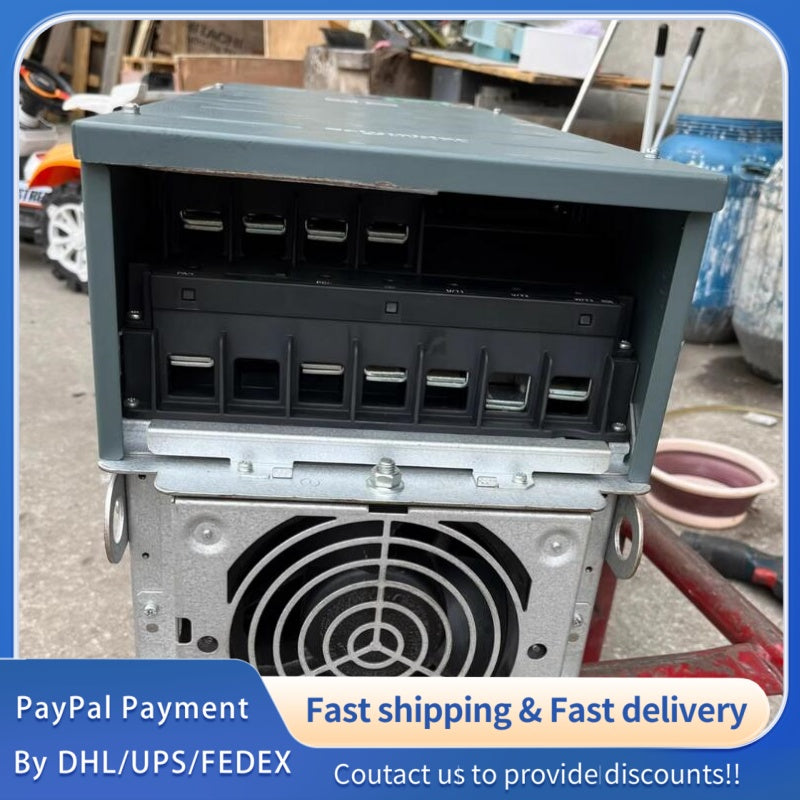

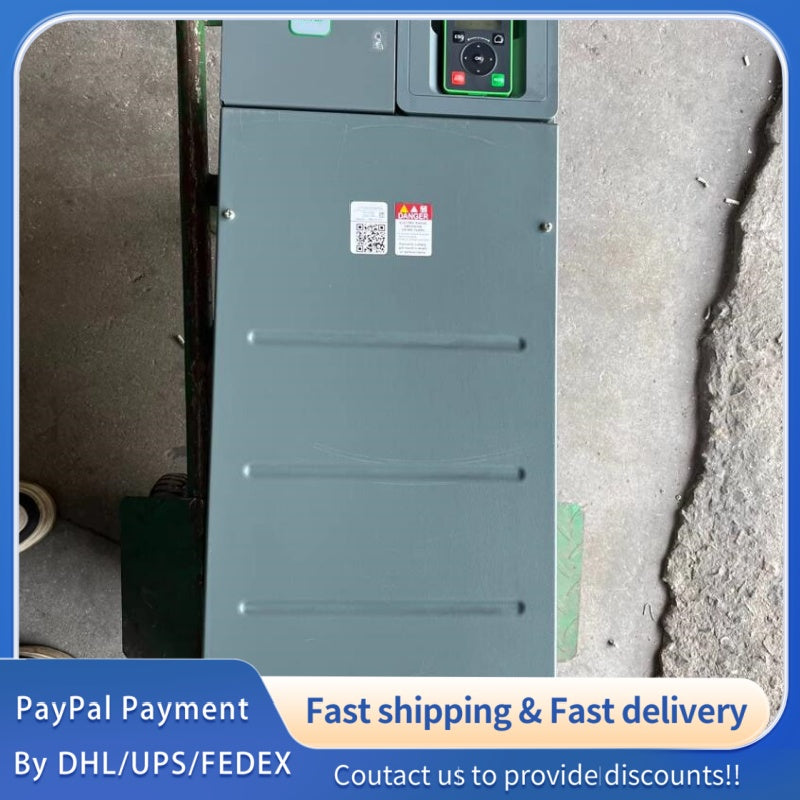

1PCS USED Schneider Electric ATV610D90N4 inverter (90kW) #LYQ007
1PCS USED Schneider Electric ATV610D90N4 inverter (90kW) #LYQ007
| Parameter | Value |
|---|---|

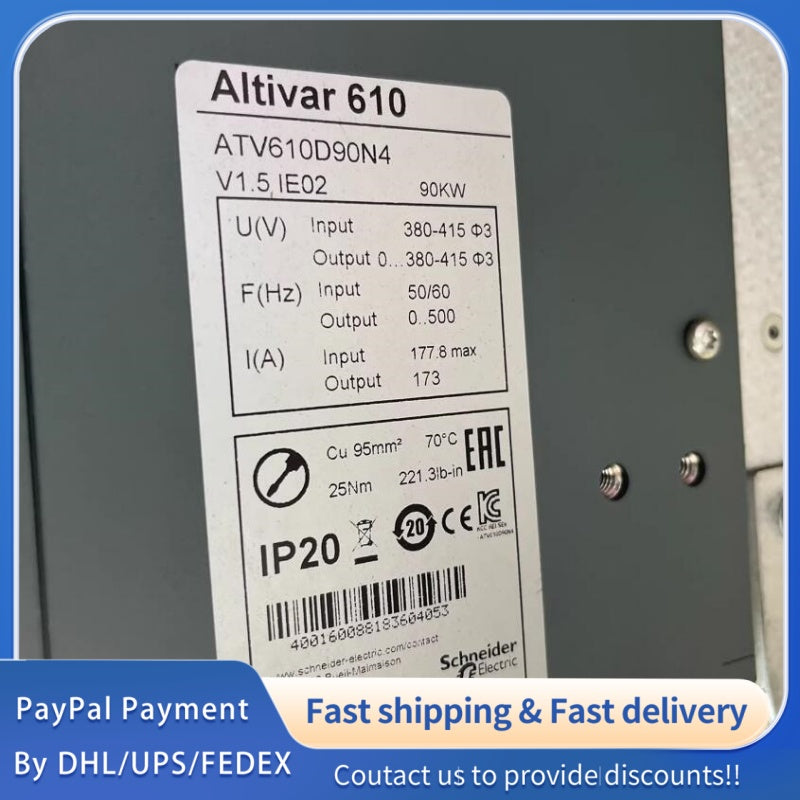

| Model | ATV610D90N4 |
| Product Series | Altivar Easy 610 |
| Motor Power (kW) | 90 kW (normal duty), 75 kW (heavy duty) |
| Motor Power (hp) | 125 hp (normal duty), 100 hp (heavy duty) |
| Supply Voltage | 380…460 V, 3-phase, -15%…+10% |
| Supply Frequency | 50…60 Hz ±5% |
| Line Current (Normal Duty) | 177.8 A @ 380 V, 168.5 A @ 415 V, 159.9 A @ 460 V |
| Line Current (Heavy Duty) | 155.8 A @ 380 V, 149.1 A @ 415 V, 138.1 A @ 460 V |
| Prospective Short-Circuit Current | 50 kA |
| Apparent Power | 121.1 kVA @ 415 V (normal), 107.2 kVA @ 415 V (heavy); 127.4 kVA @ 460 V (normal), 110.0 kVA @ 460 V (heavy) |
| Continuous Output Current | 173 A @ 2.5 kHz (normal), 145 A @ 2.5 kHz (heavy) |
| Max Transient Current | 190 A (60s, normal), 218 A (60s, heavy) |
| Output Frequency Range | 0.0001…500 Hz |
| Frequency Resolution | 0.1 Hz (display), 0.012/50 Hz (analog input) |
| Switching Frequency | 2.5 kHz (nominal), adjustable 1…8 kHz |
| Control Modes | V/F control, vector control (optimized torque) |
| IP Rating | IP20 |
| Cooling | Forced convection |
| Dimensions (H×W×D) | 762 × 290 × 323 mm (922 mm H with EMC plate) |
| Weight | 53 kg |
| Power Dissipation | 1745 W (forced convection @ 380 V, 2.5 kHz) |
| Operating Temp | -15…+45 °C (no derating), 45…60 °C (derated) |
| Storage Temp | -40…+70 °C |
| Operating Altitude | ≤1000 m (no derating), 1000…4800 m (1% derating per 100 m) |
| EMC Filter | Integrated (EN/IEC 61800-3 Cat. C3, 50 m max cable) |
| Communication | Modbus serial (RJ45), 4.8/9.6/19.2/38.4 kbit/s |
| Digital Inputs | 6 (DI1–DI6: 24 V DC, 3.5 kΩ; DI5/DI6: 0–30 kHz pulse) |
| Relay Outputs | R1/R2/R3: 3 A @ 250 V AC (resistive), 2 A @ 250 V AC (inductive) |
| Protection Features | Motor thermal, phase loss, drive overheat, output overcurrent, short-circuit, DC bus over/undervoltage, line phase loss, overspeed, control circuit break |
