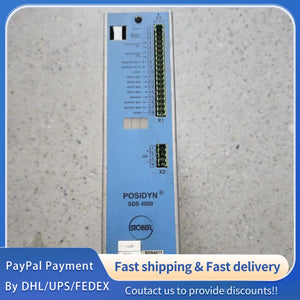

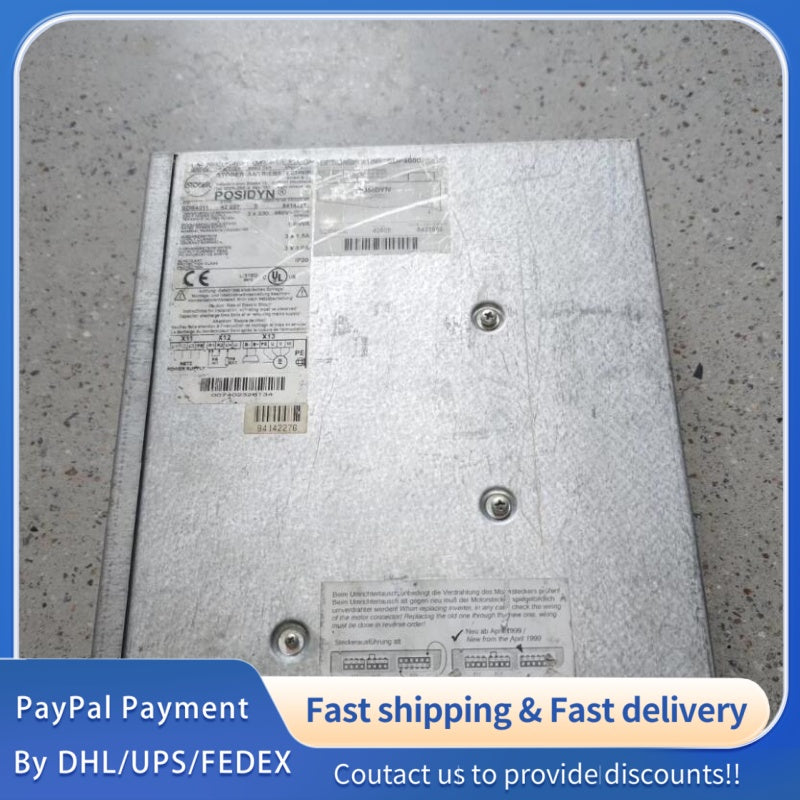

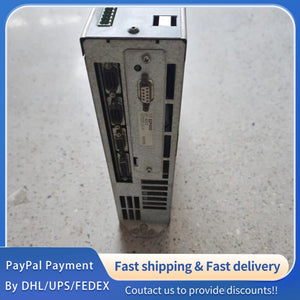

1pc used STOBER Driver SDS4011 #LYQ007
1pc used STOBER Driver SDS4011 #LYQ007
1pc used STOBER Driver SDS4011 #LYQ007
1. General Information
Part Number: SDS4011; Model: SDS4011; Product Name: Industrial Servo Driver
Brand: STOBER (STOBER Antriebstechnik GmbH, a Global Leader in Precision Drive Systems and Automation Solutions)
Product Status: Original New Unit; Product Category: Compact Precision Servo Driver, Designed for Low to Medium Power Motion Control Applications
Core Application: Widely used in small automation equipment, precision positioning stages, packaging machinery, textile machinery, electronic component assembly lines, and material handling systems. Suitable for high-precision position, speed, and torque control of small to medium-sized servo motors.
Core Features: Compact structural design for space-constrained installations; High control precision and dynamic response; Comprehensive protection mechanisms for safe and stable operation; Rich communication interfaces for easy system integration; Support for multiple encoder types and control modes; Industrial-grade durability for harsh working environments.
2. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Input Voltage: 3-phase AC 200 ~ 240 V (±10% Tolerance), 50/60 Hz; Optional Single-phase AC 200 ~ 240 V for Specific Configurations;
DC Bus Voltage: 280 ~ 340 VDC (Rectified from AC Input);
Control Circuit Voltage: DC 24 V (±10% Tolerance), Rated Current: 1.0 A;
Rated Output Current: 11 A (Continuous), 33 A (Peak, 3 Seconds);
Power Consumption: ≤ 1.8 kW (Typical, Full Load Operation);
Power Protection: Built-in reverse polarity protection, overvoltage protection (≥ 380 VDC), undervoltage lockout (≤ 220 VDC) and overcurrent protection (≥ 40 A), effectively preventing component damage from abnormal power supply.
2.2 Motor Compatibility
Motor Type: AC Synchronous Servo Motor;
Rated Motor Power: 0.1 ~ 3.0 kW (Compatible Range);
Motor Winding Resistance: 0.1 ~ 2.5 Ω (Phase to Phase);
Motor Winding Inductance: 0.2 ~ 8 mH (Phase to Phase, 1 kHz);
Encoder Compatibility: Incremental Encoder (TTL/HTL, Up to 1 MHz Input Frequency), Absolute Encoder (SSI, EnDat 2.2), Resolver (Optional Module).
2.3 Control Performance
Control Modes: Position Control (Pulse/Direction, CW/CCW, A/B Phase), Speed Control (Analog Input 0 ~ 10 VDC, Communication Command), Torque Control (Analog Input 4 ~ 20 mA, Communication Command), Profile Position Mode, Profile Velocity Mode, Homing Mode, Jerk-limited Motion Control;
Positioning Precision: ±0.0015 mm (Depends on Motor and Encoder Resolution, Typical with 17-bit Encoder);
Speed Adjustment Range: 0 ~ 6000 rpm (Rated Speed of Matching Servo Motor), Speed Stability: ≤ ±0.01% (No Load);
Torque Control Precision: ±2.5% (Rated Torque);
Response Time: ≤ 1 ms (Current Loop), ≤ 4 ms (Speed Loop), ≤ 8 ms (Position Loop).
2.4 Protection Functions
Comprehensive Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP), Undervoltage Protection (UVP), Overheating Protection (OTP, Heatsink Temperature ≥ 85℃), Short Circuit Protection (Phase to Phase, Phase to Ground), Motor Stall Protection, Encoder Fault Protection, Overload Protection (150% Rated Current for 1 Minute), ESD Protection.
2.5 Communication & I/O Interfaces
Standard Interfaces: 1 × RS485 (Supports Modbus RTU Protocol, Optically Isolated), 1 × Ethernet Port (10/100 BASE-TX, RJ45, Supports Modbus TCP, TCP/IP);
Optional Interfaces: PROFINET, CANopen, EtherCAT (Configurable via Expansion Module);
Digital Input/Output: 6 Digital Inputs (Optically Isolated, 24 VDC, Response Time ≤ 1 ms), 4 Digital Outputs (Transistor Output, 24 VDC, 0.5 A Per Channel);
Analog Input/Output: 2 Analog Inputs (12-bit ADC, 0 ~ 10 VDC / 4 ~ 20 mA), 1 Analog Output (12-bit DAC, 0 ~ 10 VDC, for Speed/Torque Monitoring).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
