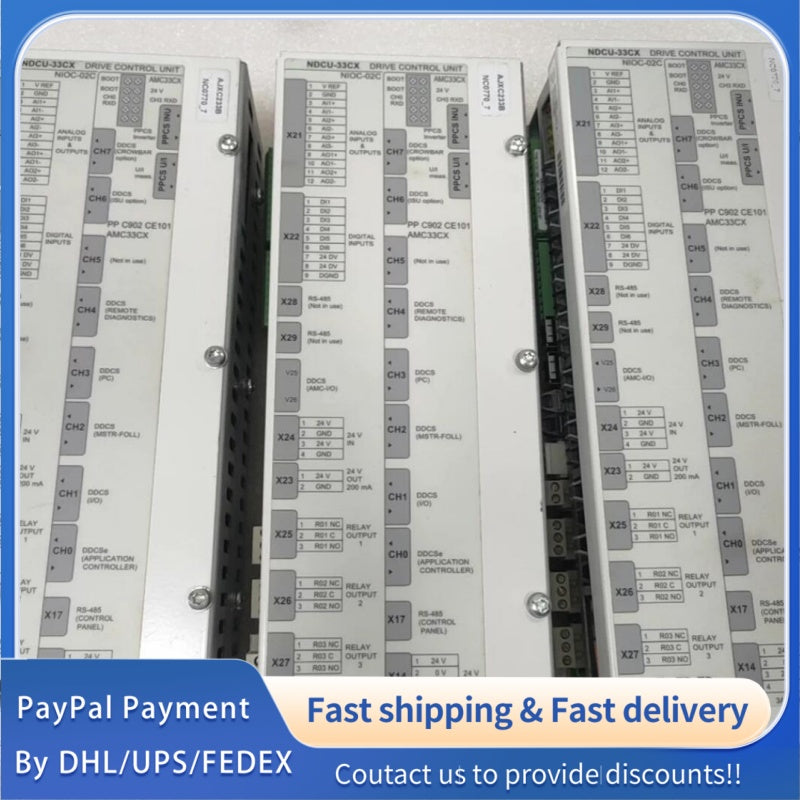

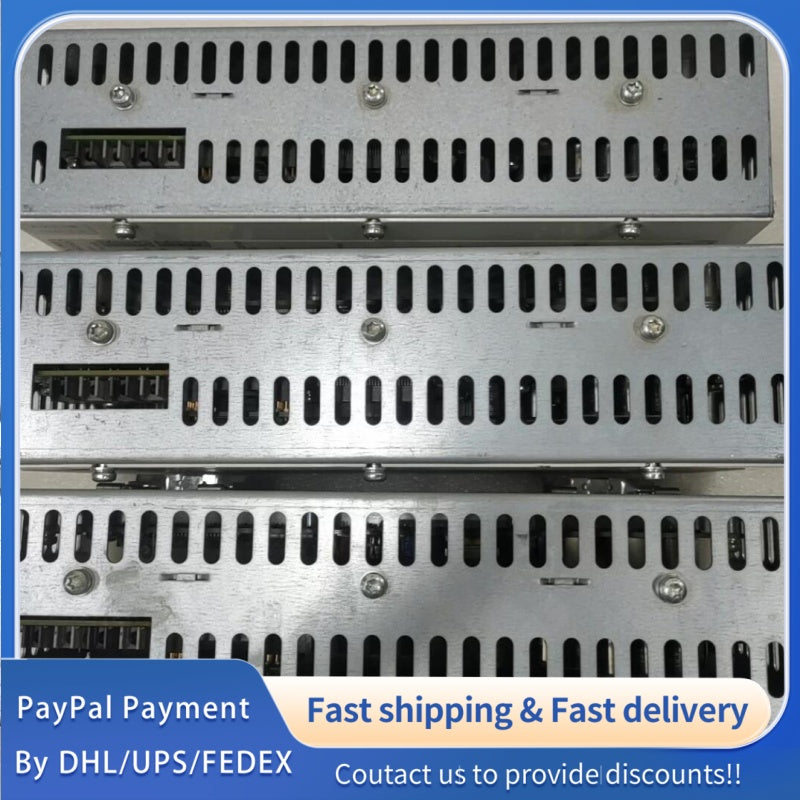

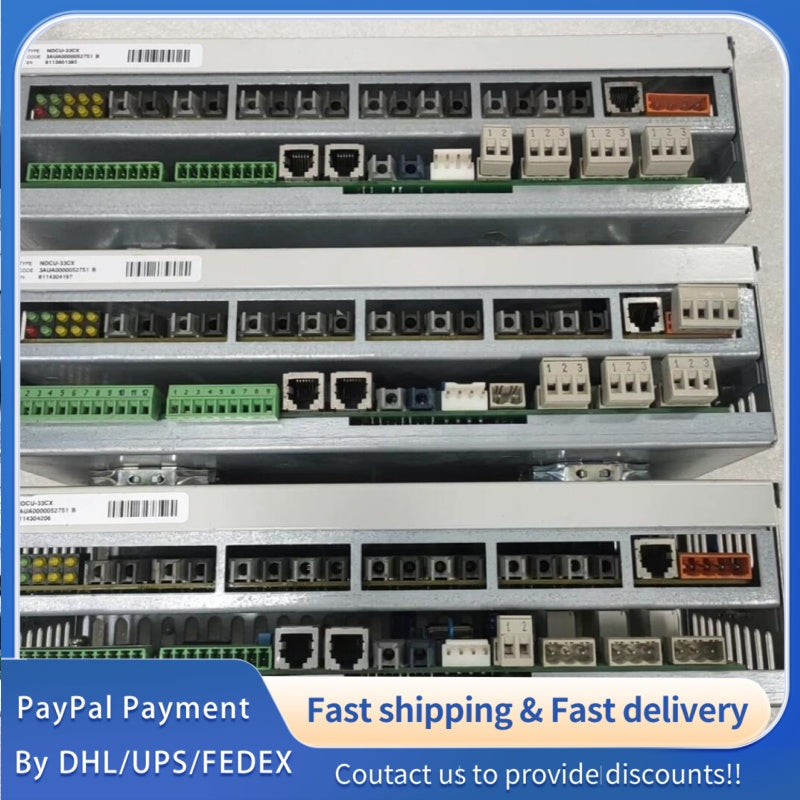

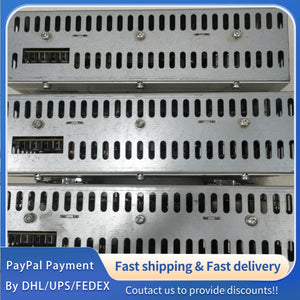

1pc used ABB Fiber Optic Communication Unit NDCU-33CX #LYQ007
1pc used ABB Fiber Optic Communication Unit NDCU-33CX #LYQ007
|
Item
|
Specification
|
|
Model Number
|
NDCU-33CX
|
|
Product Name
|
ABB Fiber Optic Communication Unit
|
|
Product Series
|
ABB NDCU Series, Industrial-Grade Fiber Optic Communication Module
|
|
Brand
|
ABB Industrial Automation
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, CE Certified, UL Listed, IP20 Protection Class
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Communication Speed
|
10
|
100
|
1000
|
Mbps
|
Auto-negotiation, full-duplex mode, compatible with 10/100/1000 Mbps Ethernet
|
|
Fiber Optic Type
|
-
|
Single-mode / Multi-mode
|
-
|
-
|
Configurable according to application requirements, factory default single-mode
|
|
Wavelength
|
850
|
1310 / 1550
|
1625
|
nm
|
850nm for multi-mode; 1310/1550nm for single-mode, low insertion loss
|
|
Transmission Distance
|
0.5
|
20
|
120
|
km
|
Depends on fiber type and wavelength; multi-mode: 0.5-2km; single-mode: 20-120km
|
|
Receiver Sensitivity
|
-38
|
-30
|
-25
|
dBm
|
At BER ≤ 10^-12, typical value for 1000 Mbps transmission
|
|
Transmitter Power
|
-15
|
-8
|
0
|
dBm
|
Single-mode, adjustable via configuration software, stable output power
|
|
Fiber Optic Connector
|
-
|
SC / LC
|
-
|
-
|
Duplex, ceramic ferrule, low insertion loss, dust-proof design
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Supply Voltage
|
20
|
24
|
28
|
V DC
|
Redundant power supply supported, reverse polarity protection, overvoltage protection
|
|
Power Consumption
|
-
|
10
|
15
|
W
|
Full load condition, including fiber optic transceiver and communication modules
|
|
Input Current
|
0.4
|
0.6
|
0.8
|
A DC
|
At 24V DC supply voltage, full load operation
|
|
Isolation Voltage
|
-
|
-
|
Vrms
|
Input/output to ground, 1 minute duration per IEC 61131-2 standard
|
|
|
Operating Frequency
|
50
|
60
|
60
|
Hz
|
Compatible with 50/60Hz industrial power grid, no frequency interference
|
