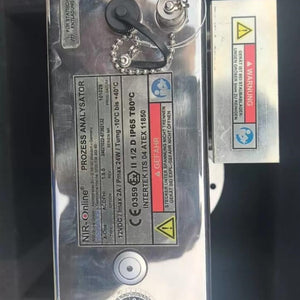

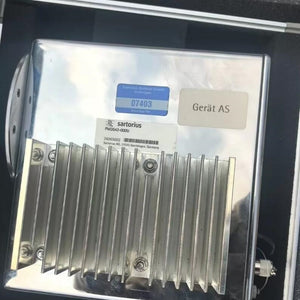

1 pc used Sartorius NIR-Online X-One (One-Six) PMD542-000U #LYQ007
1 pc used Sartorius NIR-Online X-One (One-Six) PMD542-000U #LYQ007
| Parameter | Specification |
|---|---|
| Measurement Technology | Diode Array (DAD) |
| Spectral Range (Vis) | 350 – 920 nm (10800 – 28500 cm⁻¹) |
| Spectral Range (NIR, ver.2) | 950 – 1750 nm (5700 – 10500 cm⁻¹) |
| Spectral Range (NIR, ver.3) | 900 – 1700 nm (5900 – 11100 cm⁻¹) |
| Measurement Time | 30 ms (ver.2); 10 ms (ver.3) |
| Light Source | Halogen lamp, dual-lamp system |
| Light Source Lifetime (MTBF) | 18,000 hours (2 x 9,000 hours) |
| Spot Diameter | 30 – 40 mm (depending on optics/accessories) |
| Imaging System (Optional) | High-resolution CCD, 80 μm spatial resolution |
| Max. Product Flow Speed (with Imaging) | 1 m/s |
| Dimensions (W x D x H) | 220 x 220 x 135 mm |
| Weight | 6 – 7 kg (depending on configuration) |
| Operating Pressure | Up to 30 bar at mounting flange |
| Ambient Temperature | -10 °C to +40 °C |
| Process Temperature | -10 °C to +70 °C |
| Humidity | < 90 % RH, non-condensing |
| Vibration Resistance | 0.2 G at 0.1 – 150 Hz |
| Ingress Protection | IP65 / IP67 |
| ATEX Classification | Ex II 1/2D ta tb IIIC T80C Da Db IP65 |
| Power Supply | 110 – 240 V AC, 50/60 Hz |
| Power Consumption | 30 W |
