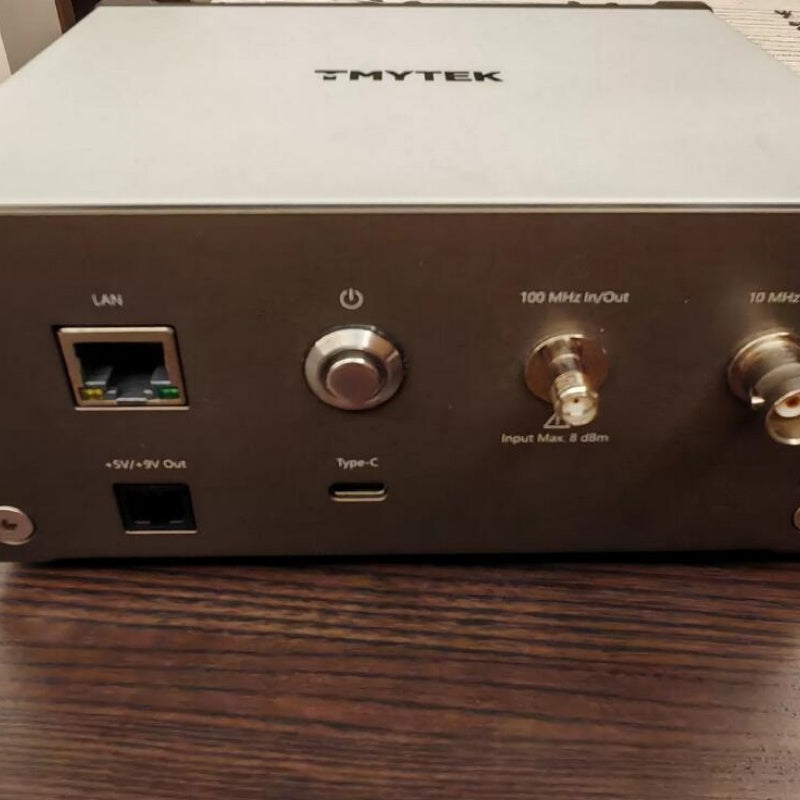

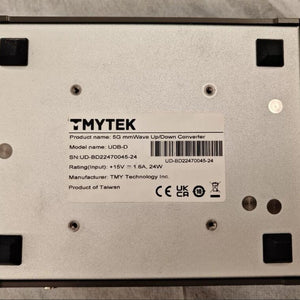

1 pc used TMYTEK UDB-D 5G mmWave Up/Down Converter #LYQ007
1 pc used TMYTEK UDB-D 5G mmWave Up/Down Converter #LYQ007
| Parameter | Condition | Unit | Min | Typ | Max |
|---|---|---|---|---|---|
| RF Frequency | — | GHz | 24 | — | 44 |
| IF Frequency | — | GHz | 0.01 | — | 14 |
| LO Frequency | Controllable | GHz | 24 | — | 44 |
| LO Frequency Resolution | — | MHz | — | 0.01 | — |
| Conversion Loss | Full Band | dB | — | 13 | — |
| IF to RF Isolation | No Filter | dB | — | 12 | — |
| IF to RF Isolation | With Optional Filter | dB | — | 70 | — |
| RF to IF Isolation | No Filter | dB | — | 18 | — |
| RF to IF Isolation | With Optional Filter | dB | — | 46 | — |
| LO to RF Leakage | Full Band | dBm | — | -22 | — |
| LO to IF Leakage | Full Band | dBm | — | -22 | — |
| Tx Output P1dB | RF = 28/39 GHz | dBm | 0 | — | — |
| Rx Input P1dB | RF = 28/39 GHz | dBm | 10 | — | — |
| RF Return Loss | Full Band | dB | 6 | 10 | — |
| IF Return Loss | Full Band | dB | 8 | 10 | — |
| Warm Up Time | Recommended | min | — | 30 | — |
| 100 MHz Output Power | @1 kHz Offset | dBm | — | -3 | — |
| 100 MHz Phase Noise | @1 kHz Offset | dBc/Hz | — | -120 | — |
| 100 MHz Phase Noise | @10 kHz Offset | dBc/Hz | — | -125 | — |
| 100 MHz Phase Noise | @100 kHz Offset | dBc/Hz | — | -130 | — |
| 100 MHz Phase Noise | @1 MHz Offset | dBc/Hz | — | -135 | — |
| 10 MHz Output Power | @1 kHz Offset | dBm | — | -5 | — |
| 10 MHz Phase Noise | @1 kHz Offset | dBc/Hz | — | -120 | — |
| 10 MHz Phase Noise | @10 kHz Offset | dBc/Hz | — | -125 | — |
| 10 MHz Phase Noise | @100 kHz Offset | dBc/Hz | — | -128 | — |
| 10 MHz Phase Noise | @1 MHz Offset | dBc/Hz | — | -130 | — |
| DC Power Consumption | No 5V/9V Load | W | — | 20 | — |
| DC Power Consumption | 5V/9V Full Load | W | — | 24 | — |
| DC Input Voltage | — | V | — | 15 | — |
| Adapter Input Voltage | AC 100-240V | Vac | 100 | — | 240 |
| Switch Time | — | ms | — | 100 | — |
