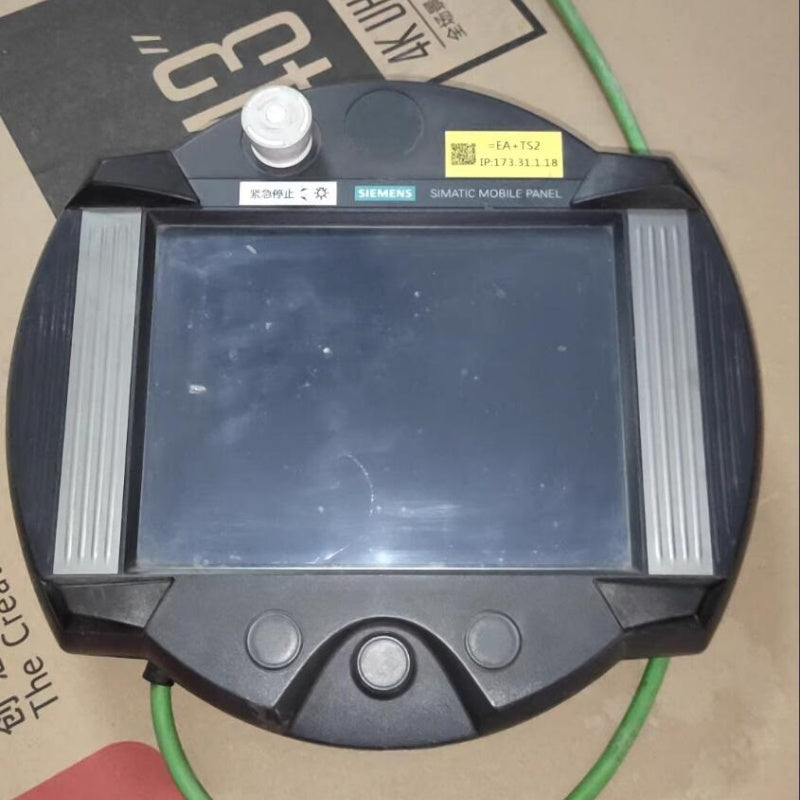

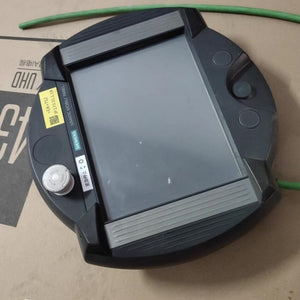

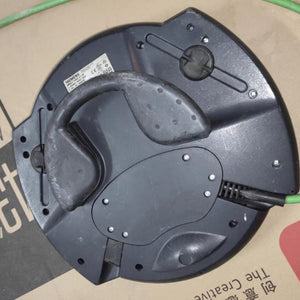

1 pc used SIEMENS SIMATIC Mobile Panel 277 10" (6AV6645-0BE02-0AX0) #LYQ007
1 pc used SIEMENS SIMATIC Mobile Panel 277 10" (6AV6645-0BE02-0AX0) #LYQ007
| Parameter | Value |
|---|---|
| Order Number | 6AV6645-0BE02-0AX0 |
| Product Type | Mobile Panel 277 10" |
| Display | 10.4" TFT color display |
| Resolution | 800 × 600 pixels |
| Colors | 65,536 colors |
| Backlight | Dimmable |
| Backlight MTBF (25°C) | 50,000 h |
| Control Elements | Touchscreen + integrated keys |
| Processor | ARM, 520 MHz |
| Memory | 6 MB usable memory |
| Backup Battery | 10 minutes buffer time |
| Interfaces | 1 × RS422, 1 × RS485, 1 × Ethernet (RJ45), 1 × USB |
| Communication | MPI, PROFIBUS DP, PROFINET, Ethernet/IP |
| Operating System | Windows CE |
| Configuration Software | WinCC flexible Standard (2008+), TIA Portal (V11+) |
| Languages | 16 online/runtime languages |
| Alarms & Messages | 32 alarm classes; 4,000 bit/analog messages |
| Recipes | 300 recipes; 200 data records/recipe |
| Variables | 10,000 variables total |
| Housing | Plastic (front) |
| Weight | 2.3 kg |
| Operating Temp. | 0 °C … +40 °C |
| Storage/Transport Temp. | -20 °C … +60 °C |
| Humidity (Operation) | Max. 80% (non-condensing) |
| Protection Class | IP54 (front), IP20 (rear) |
| Safety (Safety Mode) | Performance Level d (ISO 13849-1) |
| Supply Voltage | 24 V DC (via connection box) |
| Certifications | cULus, FM, CE |
