Parameter Category    English Specifications

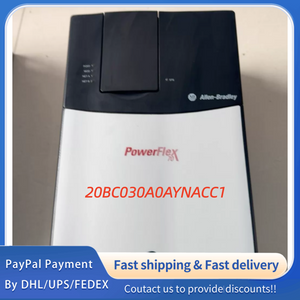

Model Number    20BC030A0AYNACC1
Product Line    Allen‑Bradley PowerFlex 700 AC Drive
Power Rating    15 kW (20 HP) Normal Duty; 11 kW (15 HP) Heavy Duty
Input Voltage    3‑Phase 400 V AC, 50/60 Hz
Output Voltage    3‑Phase 0–400 V AC, Variable Frequency (0–600 Hz)
Output Current    30 A (Normal Duty); 24 A (Heavy Duty)
Control Mode    Sensorless Flux Vector Control, 24 V DC I/O (No Encoder Needed)
Communication    Built‑in ControlNet Communication Module (CIP‑Compatible)
Brake Configuration    Brake IGBT Installed; No Internal Braking Resistor
EMC Filter    CE‑Compliant Filter (2nd Environment), Common Mode Choke Included
Enclosure    IP20 (NEMA/UL Type 1), Conformal Coating, Frame Size 2
HIM    Blank Cover (No Standard Keypad)
I/O Interface    Digital I/O: 3 x DO, 6 x DI (24 V DC Isolated)
Analog I/O: 2 x AI (0–10 V DC / 4–20 mA), 1 x AO
Protection    OVP, OCP, Short‑Circuit, Overheating, Earth Fault, Phase Loss Protection
Operating Temperature    0–50 °C (Derate 1%/°C above 40 °C)
Certifications    CE, UL, cUL, RoHS, C‑TICK, GOST, KC, MARINE Compliant
Mounting    Panel Mount

1.Our company specializes in automation industrial control accessories. We have more than 100,000 products.
?Including : frequency converter, servo driver, servo motor,data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial?? computer,encoder...etc
2.We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over the world.
3.We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store may not accurate,before purchasing please contact us to provide you with exactly quote and real pictures.
4. If you can not find the product which you need in our store, please contact us. We will check it for you.
