Parameter Category    Details
Model Identification    - Product Line: Allen‑Bradley PowerFlex 700 AC Drive

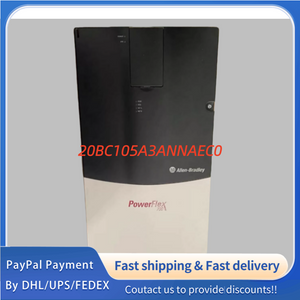

- Model Number: 20BC105A3ANNAEC0
- Frame Size: 5
- Key Code Note: “3”=480V AC input; “ANNAEC0”=24V DC I/O, IP20/NEMA 1 enclosure, blank cover, vector control cassette, enhanced EMC/thermal performance, no conformal coating
Power Ratings    - Nominal Input Voltage: 480 V AC, 3‑Phase
- Input Frequency: 50/60 Hz
- Full Load Amperage (FLA): 105 A
- Output Power: 55 kW (75 HP) Normal Duty; 45 kW (60 HP) Heavy Duty
- Output Frequency Range: 0 – 400 Hz
Control Features    - Control Modes: V/Hz, Sensorless Vector, Closed‑Loop Flux Vector
- Operator Interface: Blank Cover (HIM sold separately)
- I/O Configuration: 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output (24V DC I/O)
- Built‑in: Dynamic braking transistor (resistor sold separately), EMC filter
- Communication: EtherNet/IP (standard), optional DeviceNet adapter
Environmental Ratings    - Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) no derating; up to 50 °C (122 °F) with derating
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Humidity: 5% – 95% RH, non‑condensing
- Altitude: ≤1000 m (3280 ft) no derating; derate 1% per 100 m above 1000 m
Protection Class    - Enclosure Type: IP20/NEMA 1 (panel‑mountable)
- Overload Protection: 150% FLA for 60 s; 200% FLA for 3 s
- Short Circuit Protection: Type 2 coordination, 500% FLA for 0.5 s
- EMC Compliance: CE‑marked, built‑in EMC filter
Compliance Certifications    - UL Listed, CSA Certified, CE Marked
- Complies with IEC 61800‑5‑1, IEC 61800‑3
