Basic Information

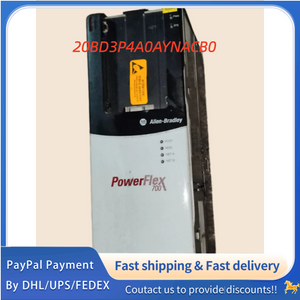

Catalog Number: 20BD3P4A0AYNACB0
Product Line: Allen‑Bradley PowerFlex® 700 AC Drive
Drive Type: AC Variable Frequency Drive (VFD)
Frame Size: Frame 0Rockwell Automation
Electrical Specifications
Input Voltage: 3‑phase 480 VAC (342–528 VAC)Rockwell Automation
Input Frequency: 50/60 HzRockwell Automation
Output Current: 3.4 A continuous; 4.5 A for 1 min; 6 A for 3 sec
Normal Duty Rating: 2 HP / 1.5 kW
Heavy Duty Rating: 1.5 HP / 1.1 kW
Control Mode: Vector Control (with FORCE Technology), V/Hz Control
Switching Frequency: Programmable up to 16 kHzRockwell Automation
Efficiency: Up to 97.5% at rated load
Mechanical & Environmental
Enclosure Rating: IP20 / NEMA/UL Type 1Rockwell Automation
Dimensions (W×H×D): 110 mm × 336 mm × 200 mmRockwell Automation
Operating Temperature: 0–40 °C (ambient)Rockwell Automation
Storage Temperature: -40 °C to +60 °C
Relative Humidity: 5–95% non‑condensing
Altitude: Up to 1000 m (3300 ft) without derating
Cooling: Forced‑air coolingRockwell Automation
Vibration/Shock: 1 G peak vibration; 15 G peak shock (11 ms)Rockwell Automation
I/O & Communications
I/O Voltage: 24 V DC standard
Digital Inputs: 6 discrete inputs
Digital Outputs: 2 relay outputs
Analog Inputs: 2 (0–10 V / 4–20 mA)
Communications: Embedded ControlNet port
Optional: EtherNet/IP, DeviceNet, PROFIBUS adapters available
Features & Protection
HIM: Blank plate (no Human Interface Module included)
EMC Filter: Built‑in CE‑compliant EMC filterRockwell Automation
Reactor: Internal common‑mode reactorRockwell Automation
Brake: Internal brake IGBT (dynamic braking capability; no external resistor included)
Protections: Overcurrent, overvoltage, undervoltage, overtemperature, motor overload, short‑circuitRockwell Automation
