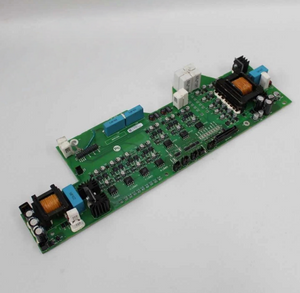

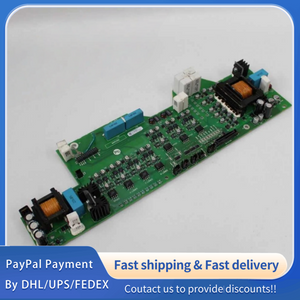

1PC used 100% tested PN-204415 a distributor internal SKU corresponding to the Allen‑Bradley 20‑750‑1132C‑2R I/O Module (PowerFlex 750 Series)#QYM001 J1688
1PC used 100% tested PN-204415 a distributor internal SKU corresponding to the Allen‑Bradley 20‑750‑1132C‑2R I/O Module (PowerFlex 750 Series)#QYM001 J1688
| Category | Parameter | Details |
|---|---|---|
| Basic Identification | Product Name | PowerFlex 750 24V I/O Module (1132C‑2R) |
| Catalog Number | 20‑750‑1132C‑2R | |

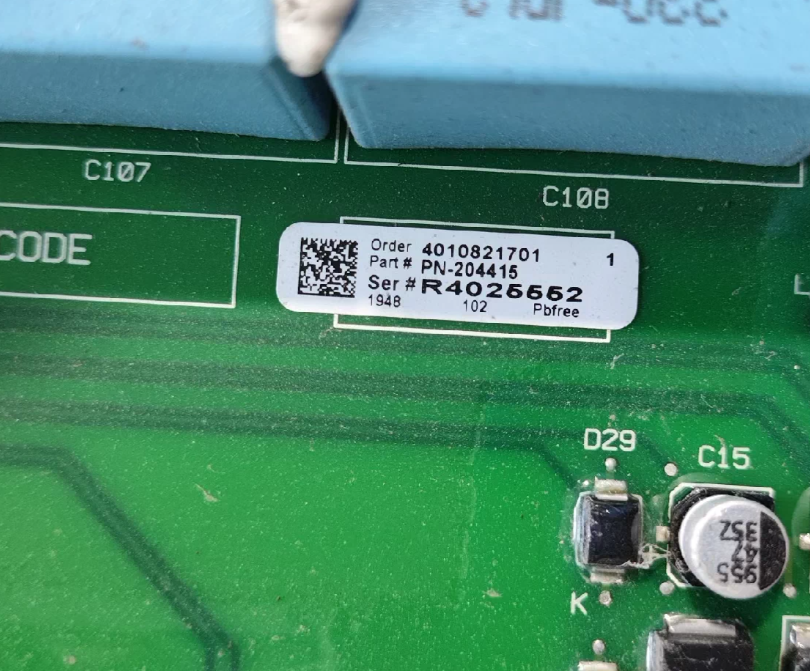

| Alternative ID | PN‑204415 (distributor internal code) | |
| Compatibility | PowerFlex 753/755 AC Drives (via DPI port for I/O expansion) | |
| Primary Function | Expands drive I/O with analog/digital channels and relay outputs | |
| Electrical Specifications | Operating Voltage | 24 VDC (auxiliary power, supplied by drive) |
| Current Consumption | 0.2 A (max) at 24 VDC | |
| Isolation Rating | 2500 V AC (control to power circuits) | |
| I/O Configuration | Analog Input (AI) | 1 channel (configurable 0–10 V DC / 4–20 mA, 12‑bit resolution) |
| Analog Output (AO) | 1 channel (configurable 0–10 V DC / 4–20 mA, 12‑bit resolution) | |
| Digital Inputs (DI) | 3 channels (configurable, 24 V DC, sinking/sourcing) | |
| Digital Outputs (DO) | 2 relay outputs (2 A @ 240 V AC / 3 A @ 24 V DC, 1NO each) | |
| Communication Interface | Connection | Drive Peripheral Interface (DPI) for seamless integration with PowerFlex 750 control core |
| Mechanical Specifications | Mounting | Drive control pod or DPI expansion slot (tool‑less slide‑in) |
| Dimensions | 150 mm (L) × 68 mm (W) × 26 mm (H) | |
| Weight | 0.18 kg (≈0.40 lbs) | |
| Environmental Ratings | Operating Temperature | -10°C to +50°C (no derating); +50°C to +60°C (derated) |
| Storage Temperature | -40°C to +85°C | |
| Humidity | 5%–95% RH (non‑condensing, no corrosive gases) | |
| Vibration Resistance | 2 g RMS (5–500 Hz, IEC 60068‑2‑6) | |
| Certifications | Global Approvals | CE, UL, CUL, CCC, KC, UKCA |
| Key Features | Functionalities | - Hot‑swappable (with drive power off)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
