Category    Parameter    Details

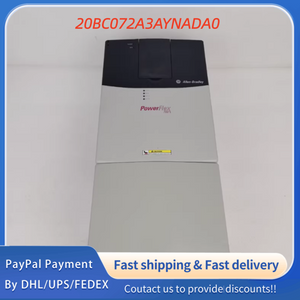

Model Information    Model Number    20BC072A3AYNADA0
Product Line    PowerFlex 700 AC Drive
Power Ratings    Normal Duty (ND)    37 kW (50 HP), 72 A continuous output current
Heavy Duty (HD)    30 kW (40 HP), 60 A continuous output current
Input Specifications    Voltage    3-phase, 660–690 VAC (690 VAC nominal)
Frequency    50/60 Hz
Phase    3-phase
Output Specifications    Voltage    0–690 VAC (3-phase, variable voltage & frequency)
Current    72 A (continuous, ND)
Frequency Range    0.1–420 Hz (max)
Enclosure & Structure    Frame Size    4
Protection Class    IP20 (NEMA Type 1, indoor use)
Conformal Coating    Yes (anti-dust, anti-moisture, anti-corrosion)
Human Interface Module (HIM)    No integrated HIM; blank plate installed
Control Features    Control Modes    V/Hz, Sensorless Vector Control, Vector Control (with feedback)
Digital I/O    6 digital inputs, 3 digital outputs
Analog I/O    2 analog inputs (0–10 VDC/4–20 mA), 1 analog output (0–10 VDC/4–20 mA)
Communication    Pre-installed DeviceNet (20‑COMM‑D) communication module
Protective Functions    Standard Protections    Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Ground Fault, Motor Thermal Protection
Dynamic Braking    Brake IGBT installed (external resistor required)
