Parameter    Value
Manufacturer    XYCOM / Acromag / Xembedded

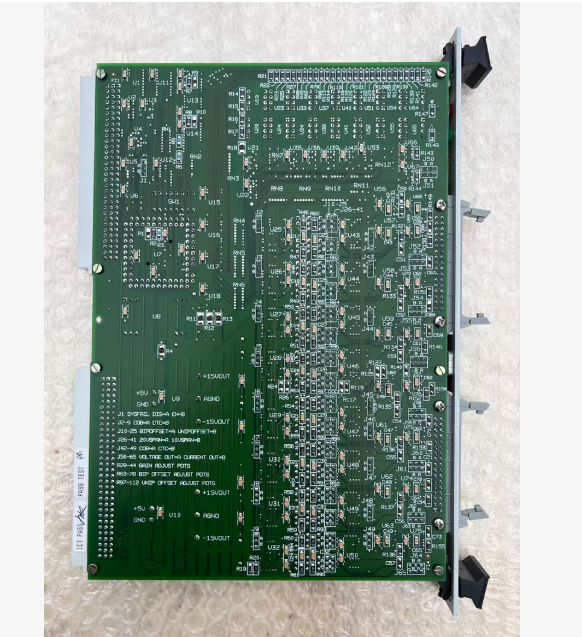

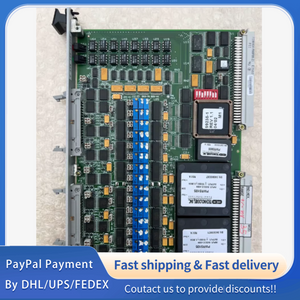

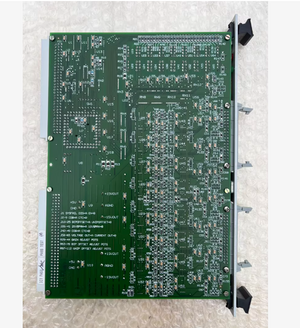

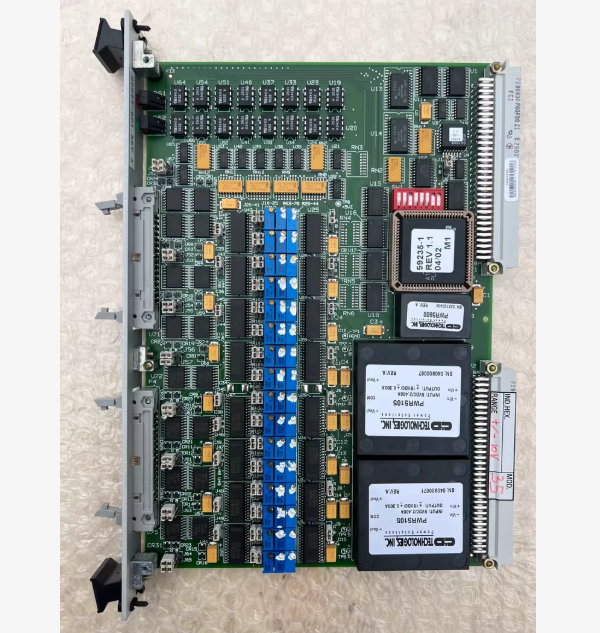

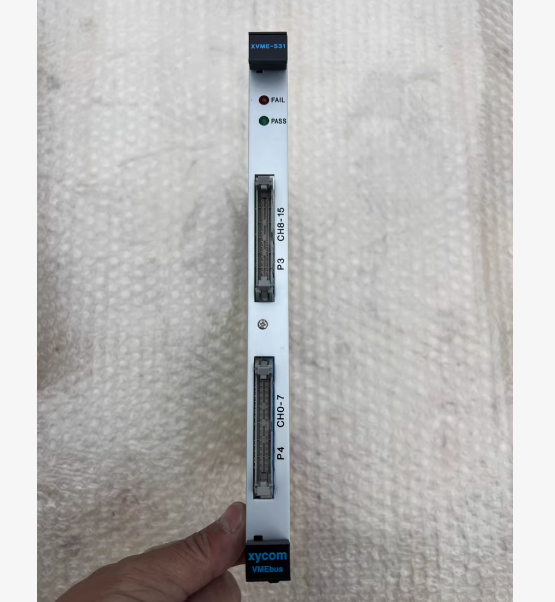

Part Number    XVME-531/2 (70531A-002)
Product Type    6U VMEbus 16-bit Slave Isolated Analog Output Module
Number of Channels    16 (individually configurable)
Isolation    500 V (Opto-isolated, Analog ↔ VMEbus)
Resolution    12-bit (Monotonic Guaranteed)
Voltage Output Ranges    0–10 V, ±5 V, ±10 V
Current Output Range    4–20 mA
Voltage Accuracy    ±0.5 LSB (±0.0122%)
Current Accuracy    ±0.66 LSB (±0.016%)
Voltage Settling Time    0–10 V / ±5 V: 5 µs; ±10 V: 6 µs (to 0.012%)
Current Settling Time    80 µs (to ½ LSB)
Compliance Voltage    10.5 V @ 20 mA
Current Load Resistance    50–525 Ω
Offset Temp Coeff    Bipolar: 10 ppm/°C (max); Unipolar: 20 ppm/°C (max)
Gain Temp Coeff    Voltage: 10 ppm/°C (max); Current: 50 ppm/°C (max)
Conversion Time    4.7 µs (typ)
VMEbus Interface    Short I/O (64 K) / Standard Memory (FF0000–FFFC00), 1 Kbyte Block
Power Input    +5 V DC (from VMEbus; on-board ±15 V DC-DC for current loop)
Power Consumption    3.2 A (typ) @ full scale (4–20 mA mode)
Operating Temperature    0–65 °C
Non-Operating Temperature    -40–85 °C
Operating Humidity    5–95% RH (Non-condensing)
Shock (Operating)    30 g (11 ms)
Vibration (Operating)    5 g (10–2000 Hz)
Form Factor    6U VME Double-High
Status    Discontinued (Legacy, OEM / Refurbished Only)
