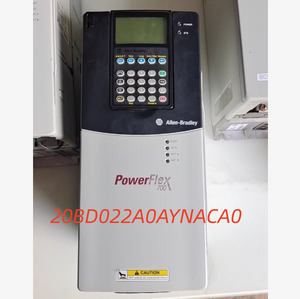

20BD022A0AYNACA0 – Key English Specifications
Basic Information
Product Type: Adjustable‑Frequency AC Drive
Product Line: PowerFlex 700
Part Number: 20BD022A0AYNACA0
Frame Size: Size 1
Weight: 19.80 lbs (8.98 kg)
Status: Discontinued by Manufacturer
Electrical Ratings
Input: 3‑phase, 380–480 V AC, 50/60 Hz
Output Current: 22 A continuous @ 480 V
Motor Power:
Normal Duty: 15 HP (11 kW)
Heavy Duty: 10 HP (7.5 kW)
Frequency Range: 0–420 Hz
Carrier Frequency: 2–10 kHz (default 4 kHz)
Overload: 150% for 3s, 110% for 1 min
Brake: Built‑in brake IGBT (no internal resistor)
Control & Performance
Control Modes: V/Hz, Sensorless Vector, Closed Loop Vector
Control Board: Standard control with 120V I/O
Feedback: No encoder feedback (standard)
Accel/Decel Time: 0–3600 s (adjustable)
Environmental & Protection
Enclosure: IP20 / NEMA Type 1
Operating Temperature: 0°C to +40°C
Humidity: 5–95% RH (non‑condensing)
Altitude: Up to 1000 m (3280 ft) without derating
Interface & Communication
User Interface: No HIM (blank plate)
I/O: 6 DI, 3 DO, 2 AI, 2 AO (120V compatible)
Communication: ControlNet Coaxial (embedded)
EMC: Integrated common‑mode choke + CE filter
Certifications
UL, cUL, CE, C‑Tick, GOST, Marine
