Basic Information

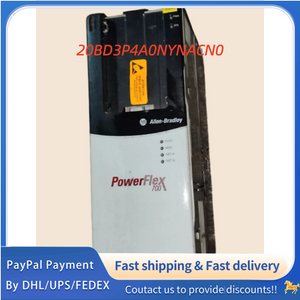

Catalog Number: 20BD3P4A0NYNACN0
Product Line: PowerFlex 700 AC Drive
Drive Type: AC Variable Frequency Drive (Vector Control)
Frame Size: 0
Electrical Data
Input Voltage: 3‑phase 480 VAC (342–528 VAC)
Input Frequency: 47–63 Hz
Output Current: 3.4 A continuous; 4.5 A for 1 min; 6 A for 3 sec
Power Rating:
Normal Duty: 2 HP / 1.5 kW
Heavy Duty: 1.5 HP / 1.1 kW
Control Mode: Sensorless Vector, V/Hz, Vector Control
Switching Frequency: Programmable up to 16 kHz
Mechanical & Environmental
Enclosure: IP20 / NEMA Type 1
Dimensions (W×H×D): 110 mm × 336 mm × 200 mm
Weight: Approx. 6.05 kg
Operating Temperature: 0–40 °C
Storage Temperature: -40 °C to +60 °C
Humidity: 5–95% non‑condensing
Cooling: Forced‑air cooling
I/O & Communication
I/O Voltage: 24 V DC
Onboard Communication: None (empty comm slot)
Digital Inputs: 6 discrete inputs
Digital Outputs: 2 relay outputs
Analog Inputs: 2 (0–10 V / 4–20 mA)
Analog Outputs: 2
Features
HIM: Blank plate (no HIM included)
Built‑in EMC filter (CE compliant)
Internal common‑mode reactor
Internal brake IGBT / dynamic brake chopper installed
Protections: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Motor overload
Certifications
UL, cUL, CE, C‑Tick, KC, GOST, RoHS compliant
