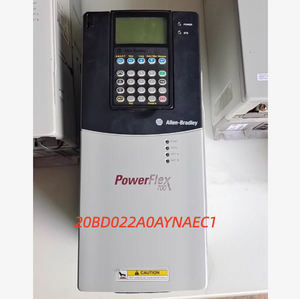

20BD022A0AYNAEC1 – Key Specifications
General
Type: Adjustable Frequency AC Drive
Frame: 1
Input: 3‑phase, 380–480 VAC, 50/60 Hz
Output Current: 22 A continuous
Power Rating:
Normal Duty: 11 kW (15 HP)
Heavy Duty: 7.5 kW (10 HP)
Frequency Range: 0–400 Hz
Operating Temperature: 0…+40 °C
Enclosure: IP20 / NEMA Type 1
Weight: Approx. 8.98 kg (19.80 lbs)
Conformal Coating: Included
Lifecycle Status: DISCONTINUED (Nov 30, 2023)
Performance
Control Modes: V/Hz, Sensorless Vector, Closed Loop Vector
Overload: 110% continuous, 150% for 3 seconds
Built‑in dynamic brake IGBT (standard for Frame 1)
Programmable acceleration / deceleration times
I/O voltage: 120V AC
Special Firmware: EC – Enhanced Control / Multi‑function Application
Environmental
Humidity: 5–95% RH (non‑condensing)
Altitude: Up to 1000 m without derating
Shock: 15 G peak for 11 ms
Vibration: 0.152 mm displacement, 1 G peak
I/O & Communications
Digital Inputs: 6
Digital Outputs: 3
Analog Inputs: 2
Analog Outputs: 2
Embedded Communication: EtherNet/IP
Feedback: None
HIM: Blank plate (no operator interface)
Certifications
UL, cUL, CE, C‑Tick
