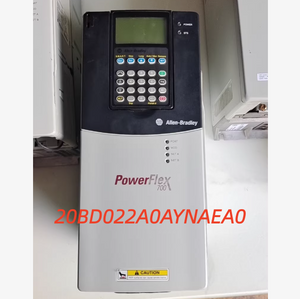

20BD022A0AYNAEA0 – Key Specifications
General
Type: Adjustable Frequency AC Drive
Frame: 1
Input: 3‑phase, 380–480 VAC, 50/60 Hz
Output Current: 22 A continuous
Power Rating:
Normal Duty: 11 kW (15 HP)
Heavy Duty: 7.5 kW (10 HP)
Frequency Range: 0–400 Hz
Operating Temperature: 0…+40 °C
Enclosure: IP20 / NEMA Type 1
Weight: Approx. 8.98 kg (19.80 lbs)
Conformal Coating: Included
Performance
Control Modes: V/Hz, Sensorless Vector, Closed Loop Vector
Overload: 110% continuous, 150% for 3 seconds
Built‑in dynamic brake IGBT (standard for Frame 1)
Programmable acceleration / deceleration times
I/O voltage: 120V ACRockwell Automation
Special Firmware: AE – Cascading Fan/Pump ControlRockwell Automation
Environmental
Humidity: 5–95% RH (non‑condensing)
Altitude: Up to 1000 m without derating
I/O & Communications
Digital Inputs: 6
Digital Outputs: 3
Analog Inputs: 2
Analog Outputs: 2
Embedded Communication: EtherNet/IP
Feedback: None
HIM: Blank plate (no operator interface)
Certifications
UL, cUL, CE, C‑Tick

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
