Parameter    Value

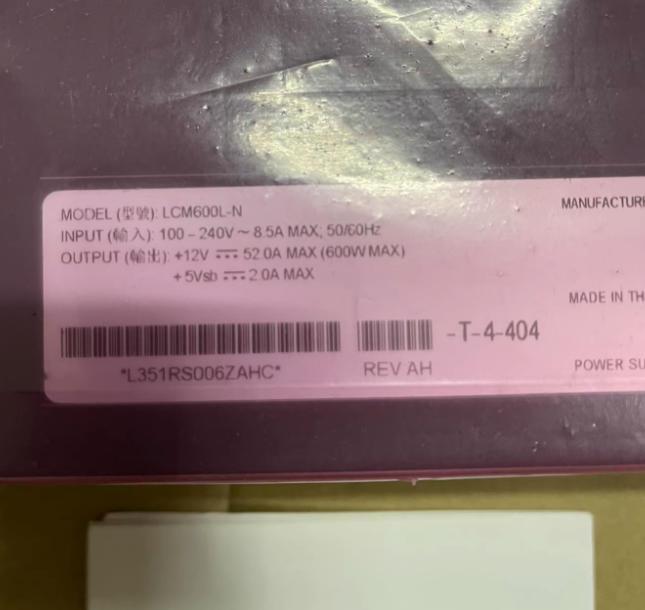

Model    LCM600L‑N
Series    LCM600
Type    600 W Front‑End AC‑DC Power Supply (Enclosed)
Number of Outputs    1 (Single Output)
Nominal Output Voltage    12 V DC
Output Voltage Tolerance    ±0.5%
Output Voltage Adjustment Range    9.6 – 14.4 V DC
Maximum Output Current    52 A
Maximum Output Power    600 W
Combined Line/Load Regulation    ≤ 2%
Output Ripple & Noise (P‑P)    ≤ 120 mV
AC Input Voltage Range    85 – 264 V AC (47 – 440 Hz)
Nominal Input Voltage    115 / 230 V AC
Maximum Input Current    8 A RMS (@ 100 V AC)
Power Factor    0.99 (Typical)
Minimum Hold‑Up Time    20 ms (Full Load)
Efficiency    ≥ 89% (Full Load)
Isolation Voltage    4,000 V AC
Leakage Current    < 0.3 mA (@ 264 V AC)
Operating Temperature    -40 °C to +70 °C (Derate Linear to 50% @ 50–70 °C)
Dimensions (L×W×H)    190.5 × 114.3 × 61.0 mm (7.50 × 4.50 × 2.40 in)
Mounting Type    Chassis Mount
Input Connector    Standard IEC Connector
Safety Approvals    IEC/EN 62368‑1, IEC 60950‑1, GB 4943, GB 9254
RoHS Status    RoHS Compliant
Weight    1.8 kg (Typical)

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
