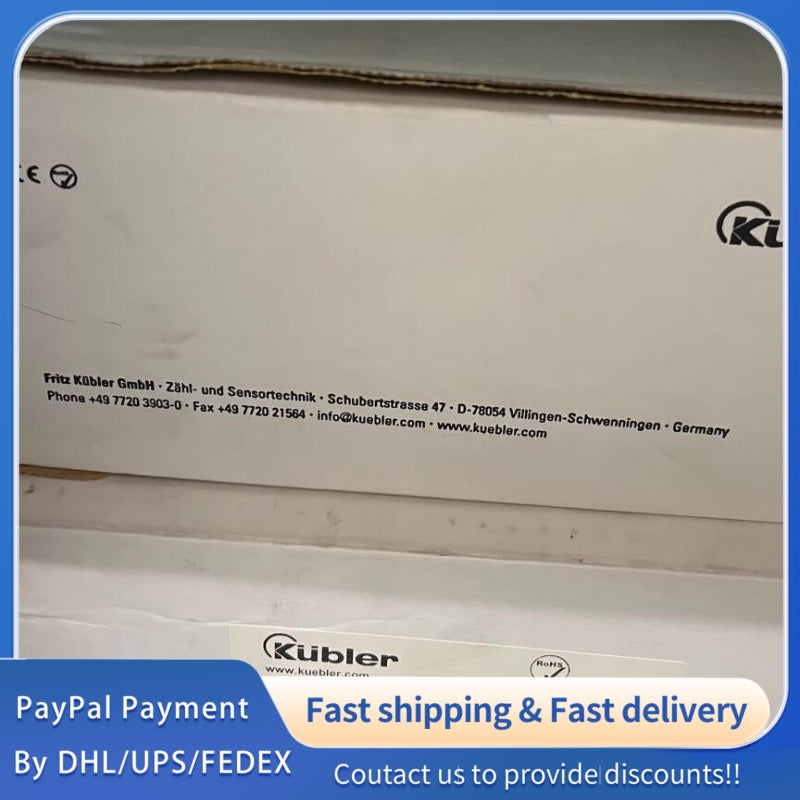

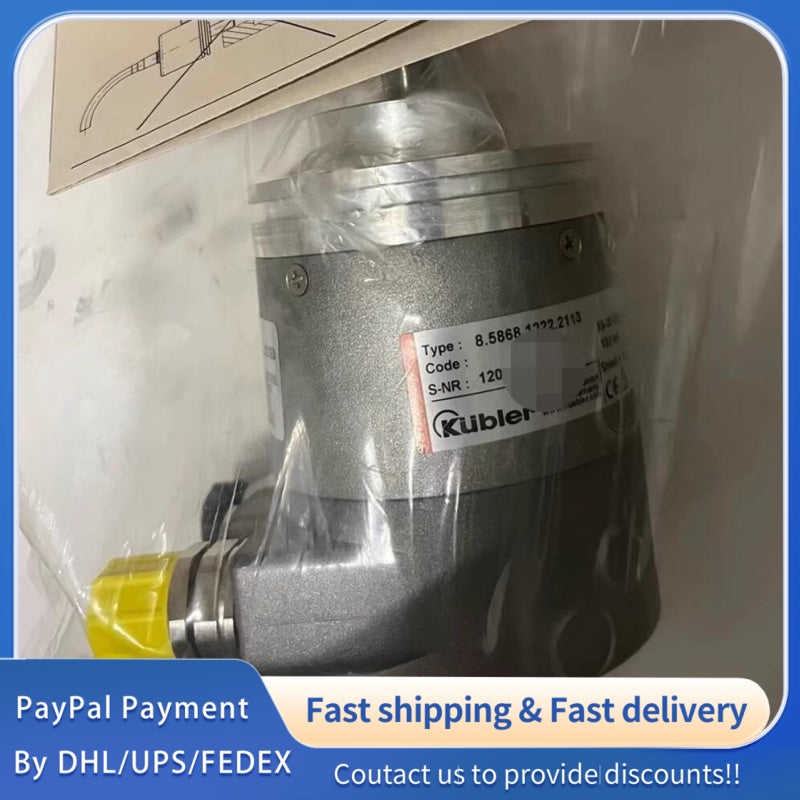

1 PCS used Kübler Encoder 8.5868.1222.2113 #LYQ007
1 PCS used Kübler Encoder 8.5868.1222.2113 #LYQ007
| Parameter | Value |
|---|---|
| Model | 8.5868.1222.2113 |
| Type | Multiturn Absolute Encoder, Optical |
| Interface | CANopen (DS301 V4.02, DS406 V3.2) |
| Singleturn Resolution | 13 bit (8192 steps) |
| Multiturn Resolution | 12 bit (4096 revolutions) |
| Total Resolution | 25 bit |
| Code Type | Binary |
| Supply Voltage | 10–30 VDC |
| Power Consumption | ≤ 1.8 W |
| Shaft Diameter | 10 mm |
| Flange | Clamping flange, Ø 58 mm |
| Max. Speed | 6000 rpm (continuous) |
| Starting Torque | < 0.05 Nm |
| Axial Load | max. 80 N |
| Radial Load | max. 120 N |
| Protection Class | IP67 (housing) / IP65 (shaft side) |
| Operating Temp. | -40 °C … +80 °C |
| Shock Resistance | 2500 m/s², 6 ms (EN 60068-2-27) |
| Vibration Resistance | 100 m/s², 55–2000 Hz (EN 60068-2-6) |
| Housing Material | Zinc die-cast |
| Shaft Material | Stainless steel |
| Connection | 3 x M12, 4-pin |
| Weight | approx. 450 g |
| Reverse Polarity Protection | Yes |
| Magnetic Field Immunity | High |
