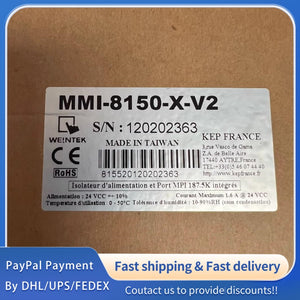

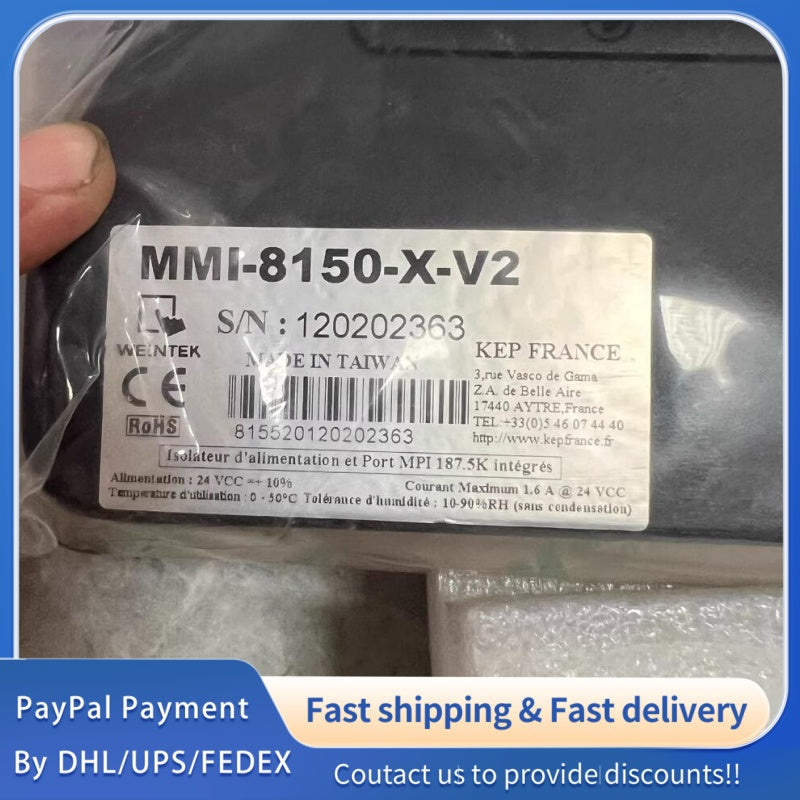

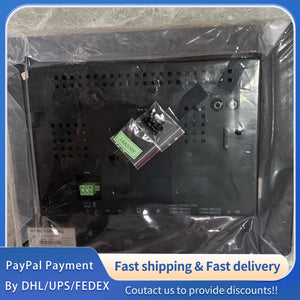

1 PCS new Weintek MT8150X-V2 (MMI-8150-X-V2) HMI #LYQ007
1 PCS new Weintek MT8150X-V2 (MMI-8150-X-V2) HMI #LYQ007
| Item | Specification |
|---|---|
| Model | MT8150X-V2 (MMI-8150-X-V2) |
| Display | 15.0" TFT LCD |
| Brightness | 350 cd/m² |
| Colors | 65,536 colors |
| Contrast Ratio | 550:1 |
| Resolution | 1024 × 768 (XGA) |
| Backlight | CCFL × 2 |
| Backlight Lifetime | 50,000 hours (typical) |
| Touch Panel | 4-wire analog resistive |
| Touch Accuracy | ±2% (X/Y active area) |
| Surface Hardness | 4H |
| Processor | AMD Geode LX800 (500 MHz, x86) |
| Flash Memory | 256 MB (DOM) |
| DRAM | 256 MB DDR-400 SDRAM (onboard) |
| SD Card Slot | Support SDHC/SD |
| RTC | Built-in (CR2032 3V battery backup) |
| COM Ports | COM1: RS-232/RS-485 2W/4W
|
| Ethernet | 1 × 10/100 Base-T |
| USB | 2 × USB 2.0 Full Speed Host |
| Audio | Line Out × 1, MIC In × 1 |
| Video Input | NTSC/PAL RCA × 2 (V2 only) |
| Input Power | 24 ±10% VDC (21.6–26.4 VDC, isolated) |
| Power Consumption | 1.6 A @ 24 VDC |
| Voltage Resistance | 500 VAC (1 min.) |
| Isolation Resistance | > 50 MΩ @ 500 VDC |
| Vibration | 10–25 Hz, 2G (X/Y/Z, 30 mins) |
| Front Protection | IP65 (O‑ring seal) |
| Operating Temp | 0–50 °C (32–122 °F) |
| Storage Temp | −20–60 °C (−4–140 °F) |
| Humidity | 10–90% RH (non‑condensing) |
| Enclosure | Aluminum |
| Dimensions (W×H×D) | 366 × 293 × 57 mm |
| Panel Cutout | 352 × 279 mm |
| Weight | Approx. 2.9 kg |
| Software | EB8000 V4.1.0 or newer |
| Certifications | CE, FCC Class A |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
