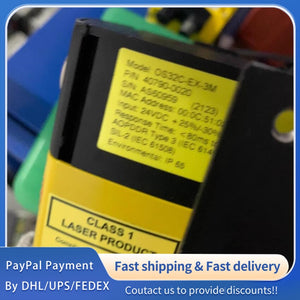

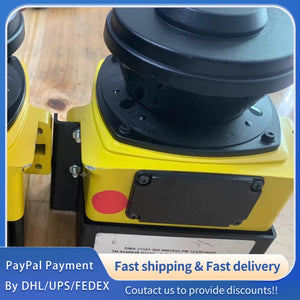

1 PCS used OMRON OS32C-EX-3M Safety Laser Scanner #LYQ007
1 PCS used OMRON OS32C-EX-3M Safety Laser Scanner #LYQ007
| Parameter | Value |
|---|---|
| Model | OS32C-EX-3M |
| Sensor Type | Type 3 Safety Laser Scanner |
| Safety Rating | PLd / Category 3 (ISO 13849-1); SIL 2, PFHD = 8.3 × 10⁻⁸ (IEC 61508) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Operating Range (Safety Zone) | 3.0 m (50/70 mm resolution); 2.5 m (40 mm); 1.75 m (30 mm) |
| Warning Zone | Up to 10.0 m |
| Minimum Object Resolution | Configurable: 30, 40, 50, 70 mm (non-transparent, ≥1.8% reflectivity; default: 70 mm) |
| Response Time (ON→OFF) | 80 ms (2 scans) to 680 ms (17 scans) |
| Response Time (OFF→ON) | ON→OFF time + 100 ms to 60 s (configurable) |
| Laser Wavelength | 905 nm (Infrared Laser Diode) |
| Laser Class | Class 1 (IEC 60825-1, EN 60825-1, JIS C 6802, 21 CFR) |
| Supply Voltage | 24 VDC ±30%/+25% (ripple p-p ≤2.5 V) |
| Power Consumption | Normal: ≤5 W; Standby: 3.75 W (no load) |
| Safety Outputs (OSSD) | 2 × PNP; 250 mA max.; residual voltage ≤2 V |
| Auxiliary / Warning Outputs | 1 × NPN/PNP (configurable) each; 100 mA max. |
| Inputs | EDM, Start, Zone Select, Stand-by (24 V / 0 V logic) |
| Communication | Ethernet (100BASE-TX); M12 4‑pin connector |
| Enclosure Rating | IP65 (IEC 60529) |
| Operating Temp. | -10 to +50 °C; Storage: -25 to +70 °C |
| Humidity | ≤95% RH (non‑condensing) |
| Dimensions (W×H×D) | 133.0 × 104.5 × 142.7 mm (excl. cable) |
| Weight | 1.3 kg (main unit only) |
| Enclosure Material | Die‑cast aluminum (sensor head/I/O block); polycarbonate (optical cover) |
| Cable Options | Power: up to 30 m; Ethernet: up to 100 m |
| Approvals | TÜV Rheinland, UL, EN/IEC 61496‑1/‑3, IEC 61508 (SIL2) |
