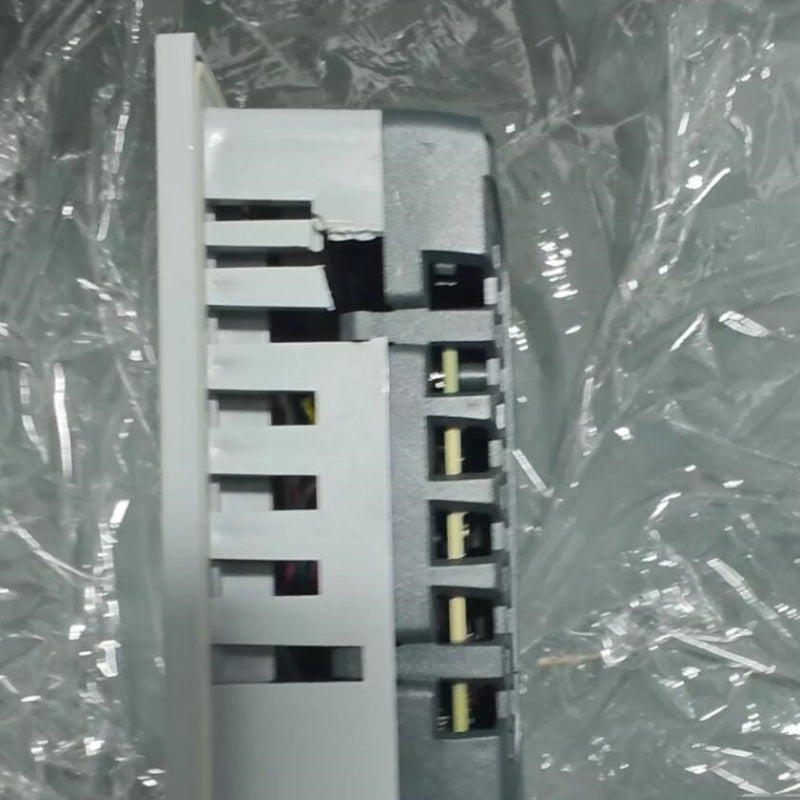

1 PCS USED B&R Power Panel T30 6PPT30.0702-20F024 #LYQ007
1 PCS USED B&R Power Panel T30 6PPT30.0702-20F024 #LYQ007
| Parameter | Value |
|---|---|
| General | |
| Product Series | Power Panel T30 |

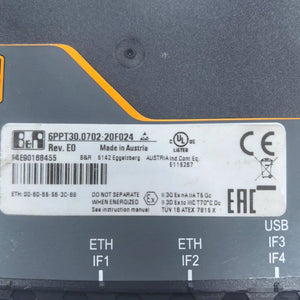

| Model | 6PPT30.0702-20F024 |
| Cooling | Passive (fanless) |
| Buzzer | Yes |
| mapp View Support | Yes |
| Controller | |
| Operating System | PPT30 system |
| Processor | ARM Cortex-A8 |
| Clock Frequency | 600 MHz |
| L1 Cache | 64 kB |
| L2 Cache | 256 kB |
| DRAM | 256 MB |
| Flash Memory | 512 MB |
| Display | |
| Type | TFT color |
| Diagonal | 7.0" |
| Resolution | WVGA, 800 x 480 pixels |
| Colors | 16.7 million (RGB, 8 bits/channel) |
| Contrast | Typ. 550:1 (Rev. ≥ G3) / 600:1 (Rev. < G3) |
| Brightness | Typ. 500 cd/m² |
| Backlight | LED, 50,000 h half-brightness time |
| Touch Screen | |
| Type | Analog resistive (AMT) |
| Controller | B&R, 12-bit |
| Transmittance | 80% ±3% |
| Interfaces | |
| Ethernet | 2x RJ45 (integrated switch), 10/100 Mbit/s |
| USB | 2x USB 2.0 Type A (0.5 A / 0.2 A) |
| Electrical | |
| Nominal Voltage | 24 VDC |
| Voltage Range | 8–32 VDC |
| Max. Current | 389 mA @ 24 VDC |
| Max. Power | 9.34 W |
| Reverse Polarity Protection | Yes |
| Environmental | |
| Operating Temp. | -20 to +60°C |
| Storage/Transport Temp. | -20 to +70°C |
| Protection | Front: IP65; Back: IP20 (EN 60529) |
| Mechanical | |
| Dimensions (W×H×D) | 197 × 140 × 47.8 mm |
| Weight | 0.6 kg |
| Front Design | Anthracite gray pinstripe |
| Certifications | CE, UKCA, cULus, DNV, LR, KR, ABS, BV |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
