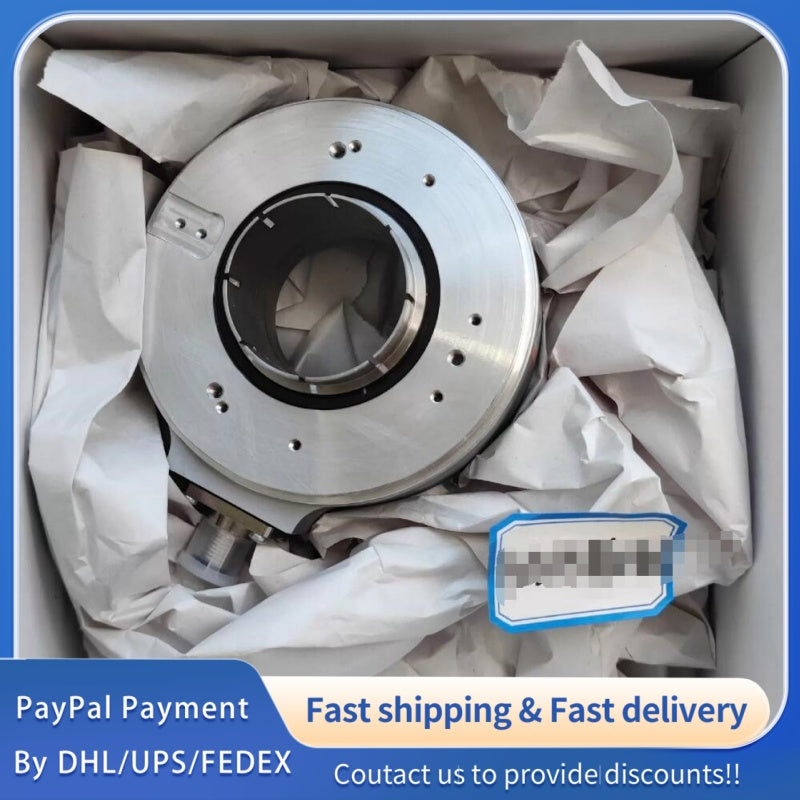

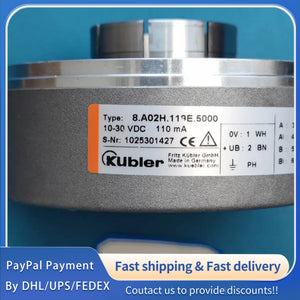

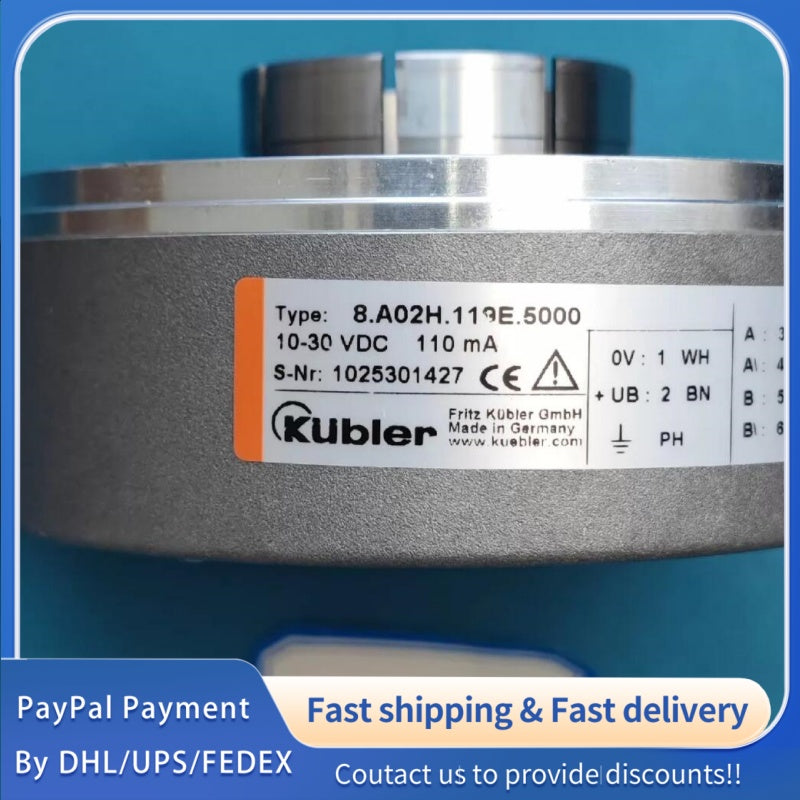

1 PCS new Kubler Encoder 8.A02H.119E.5000 #LYQ007
1 PCS new Kubler Encoder 8.A02H.119E.5000 #LYQ007
| Parameter | Value |
|---|---|
| Product Type | Incremental Hollow Shaft Encoder |
| Model | 8.A02H.119E.5000 |
| Housing Diameter | Ø 100 mmKübler Group |
| Hollow Shaft | Ø 20 mm, throughKübler Group |
| Flange | Ø 100.00 mmKübler Group |
| Resolution | 5000 ppr (pulses per revolution)Kübler Group |
| Max. Rotational Speed | 6000 min⁻¹Kübler Group |
| Scanning Principle | OpticalKübler Group |
| Supply Voltage | 5 V DCKübler Group |
| Output Circuit | Push‑pull (with inverted signal), 10…30 V DCKübler Group |
| Connection | M12 8‑pin radial connectorKübler Group |
| Protection Class | IP65Kübler Group |
| Operating Temperature | –40 °C … +80 °CKübler Group |
| Weight | 800 gKübler Group |
| Installation Depth | 49 mmKübler Group |
| Shock Resistance | 200 g (2000 m/s²), 6 ms (DIN‑IEC 68‑2‑27)Kübler Group |
| Vibration Resistance | 10 g (100 m/s²), 10…2000 Hz (DIN‑IEC 68‑2‑6)Kübler Group |
| Shaft Material | Stainless steel, H7 toleranceKübler Group |
| Starting Torque | < 0.2 Nm (with sealing)Kübler Group |
| Rotor Moment of Inertia | < 220 × 10⁻⁶ kg·m²Kübler Group |
| Current Consumption (no load) | Typ. 80 mA / Max. 150 mA (with inverted signals)Kübler Group |
| Pulse Frequency | Max. 300 kHzKübler Group |
| Signal Level (A/B) | High: min. UB–2.0 V; Low: max. 0.5 VKübler Group |
| Rise/Fall Time | Max. 1 µsKübler Group |
| Short‑Circuit Proof | YesKübler Group |
| Reverse Polarity Protection | Yes (10…30 V DC)Kübler Group |
| Certifications | CE, UL (File 224618), RoHSKübler Group |
