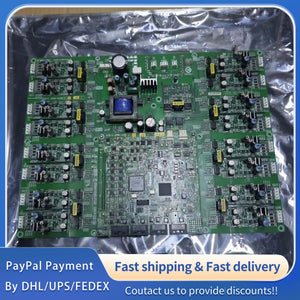

1 PCS USED TMEIC Control Board CCD-C ARND-4195 2KBF 4199P002-B #LYQ007

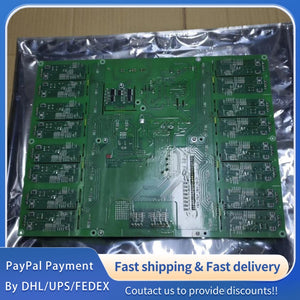

1 PCS USED TMEIC Control Board CCD-C ARND-4195 2KBF 4199P002-B #LYQ007

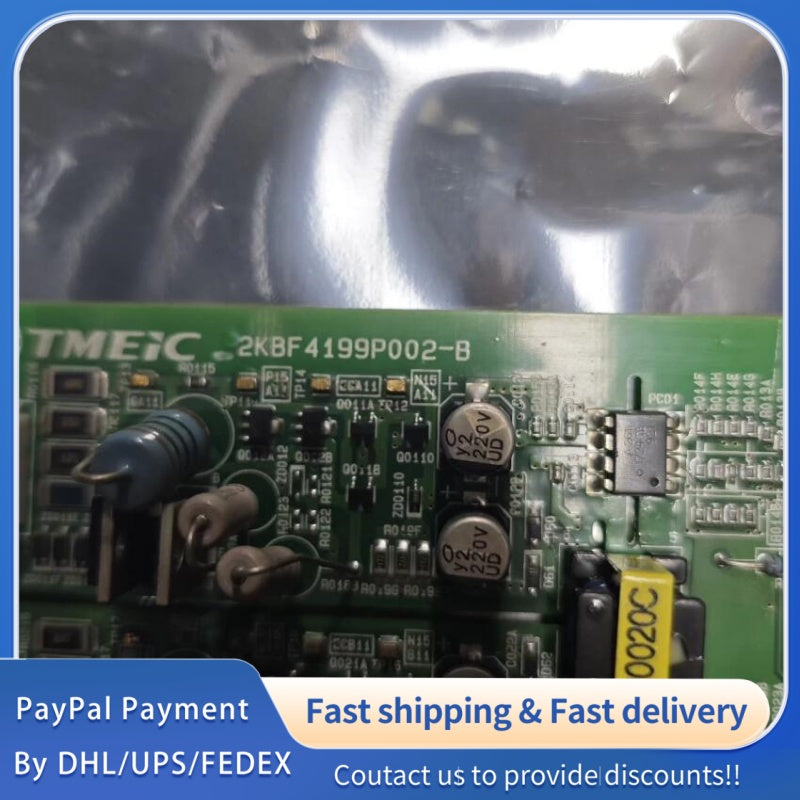

1 PCS USED TMEIC Control Board CCD-C ARND-4195 2KBF 4199P002-B #LYQ007
Part Numbers: ARND-4195, 2KBF 4199P002-B; Product Name: TMEIC CCD-C Control Board
Brand: TMEIC (Toshiba Mitsubishi-Electric Industrial Systems Corporation); Product Series: Industrial Inverter Control Series, engineered for TMEIC AC drive systems, undertaking core tasks of drive logic operation, signal conversion, and multi-equipment coordination control.
Product Status: Original New Unit (In Stock); Product Category: Industrial Automation Control Board, specialized in high-performance control and precise signal management of medium-voltage and high-voltage industrial drive equipment.
Core Applications: TMEIC TMdrive-MVe/TMdrive-LV series inverter systems, steel rolling equipment, marine propulsion systems, power generation units, industrial compressors, large-scale pumps, fans and other heavy-duty industrial scenarios requiring high-precision and stable drive control.
Core Features: Modular integrated design; High compatibility with TMEIC mainstream drive platforms; High-speed digital-analog hybrid signal processing; Advanced fault diagnosis and alarm function; Support for multiple industrial communication protocols; Industrial-grade anti-interference capability and wide temperature adaptation.
2. Electrical Specifications
2.1 Power Parameters
Power Supply: DC 24V ±10% (Industrial Standard); Rated Power Consumption: ≤15W (Typical Operation); Peak Power Consumption: ≤22W (During Startup and Load Peak).
Input Current: 0.6A (Typical, 24V DC), 1.2A (Peak, 24V DC); Standby Current: ≤50mA (24V DC, No Load).
2.2 Signal & Communication Parameters
Communication Interface: PROFIBUS DP, MODBUS RTU, Ethernet/IP (Optional); Data Transmission Rate: Up to 12Mbit/s (PROFIBUS DP), 100Mbit/s (Ethernet/IP).
Signal Type: Isolated Digital Input/Output, Precision Analog Control Signal; Analog Input Range: ±10V DC, 4~20mA DC (Configurable); Digital I/O Count: 16 Digital Inputs, 10 Digital Outputs (Software Configurable for Function).
2.3 Protection Functions
Over-Voltage Protection (OVP): 30V DC (Power Terminal, Auto-Recovery Mode); Over-Current Protection (OCP): 2.0A DC (Power Loop, Latch Mode, Manual Reset).
ESD Protection: ±12kV (Contact), ±18kV (Air, Per IEC 61000-4-2); Surge Protection: ±2.5kV (Line to Ground, Per IEC 61000-4-5); Over-Temperature Protection: Triggered at 85℃ (Auto-Shutdown, Alarm Output).
3. Environmental Specifications
3.1 Operating Environment
Operating Temperature: -20℃~65℃ (No Derating); Storage Temperature: -40℃~85℃ (No Condensation).
Relative Humidity: 5%~95% RH (Non-Condensing, -20℃~65℃); Altitude: ≤2500m (Above Sea Level, Normal Operation); Above 2500m, derate 1.5% per 100m.
Vibration Resistance: 10Hz~500Hz, 0.8G (X/Y/Z Directions, Continuous Operation, Per IEC 60068-2-6); Shock Resistance: 20G (11ms Duration, Half-Sine Wave, Per IEC 60068-2-27).
3.2 EMC Standards
Emission Standards: EN 55011 Class A, EN 61800-3; Immunity Standards: EN 61000-4-3 (Radiated Immunity 10V/m), EN 61000-4-4 (EFT ±4kV Power Line, ±2kV Signal Line).
Protection Degree: IP20 (Board-Level); Pollution Degree: 2; Over-Voltage Category: Ⅱ (Industrial Environment).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
