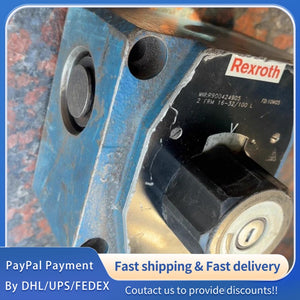

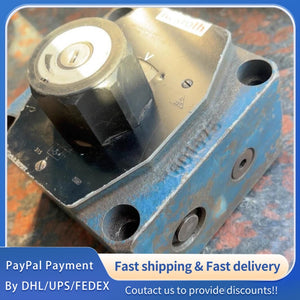

1 PCS used Rexroth Flow Control Valve 2FRM16-32/100L #LYQ007
1 PCS used Rexroth Flow Control Valve 2FRM16-32/100L #LYQ007
|
Item
|
Specification
|
|
Model Number
|
2FRM16-32/100L
|
|
Product Name
|
Flow Control Valve (Adjustable, Pressure-Compensated)
|
|
Brand & Manufacturer
|
Bosch Rexroth AG
|
|
Product Series
|
2FRM Series, Pressure-Compensated Variable Flow Control Valve
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, CE Certified, IP65 Protection Class (Valve Body)
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Rated Flow Rate
|
10
|
50
|
100
|
L/min
|
Adjustable range, rated at nominal pressure, continuous operation
|
|
Nominal Pressure (PN)
|
10
|
21
|
31.5
|
MPa
|
Maximum allowable continuous working pressure, static pressure resistance up to 40 MPa
|
|
Pressure Compensation Range
|
0.5
|
1.5
|
3.0
|
MPa
|
Difference between inlet and outlet pressure for stable flow control, adjustable
|
|
Flow Control Accuracy
|
-
|
±3
|
±5
|
%
|
Relative to set flow rate, within pressure compensation range
|
|
Pressure Loss (At Rated Flow)
|
-
|
0.8
|
1.2
|
MPa
|
Pressure drop between inlet and outlet at rated flow and nominal pressure
|
|
Check Valve Flow Capacity
|
-
|
100
|
120
|
L/min
|
Maximum reverse flow rate through built-in check valve, pressure loss ≤0.3 MPa
|
|
Oil Viscosity Range
|
10
|
32
|
460
|
mm²/s
|
Recommended hydraulic oil: ISO VG 32-68, anti-wear hydraulic oil (AW)
|
|
Parameter
|
Specification
|
|
Connection Type
|
Flange Connection, Conforms to ISO 6162-1 (CETOP RP 121 H), Standard Mounting Interface
|
|
Flange Size
|
CETOP 5 / ISO 6162-1 Size 5, Flange Diameter: 80 mm
|
|
Port Diameter (Inlet/Outlet)
|
G 1/2" (BSPP) or M18×1.5 (Metric Thread), Thread Accuracy: 6H
|
|
Mounting Orientation
|
Vertical or Horizontal Mounting, Flow Direction: Inlet (P) → Outlet (A), Check Valve: Outlet (A) → Inlet (P)
|
|
Mounting Fasteners
|
4 × M8×20 Hexagon Socket Head Cap Screws, Torque: 12 ± 1 N·m
|
|
Adjustment Method
|
Handwheel Adjustment (Knurled), Lockable with Hexagon Socket Set Screw, Adjustment Range: 0~100% Flow Rate
|
|
Installation Clearance
|
≥ 50 mm Around Valve Body (For Heat Dissipation and Maintenance), Avoid Direct Exposure to High-Temperature Components
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
