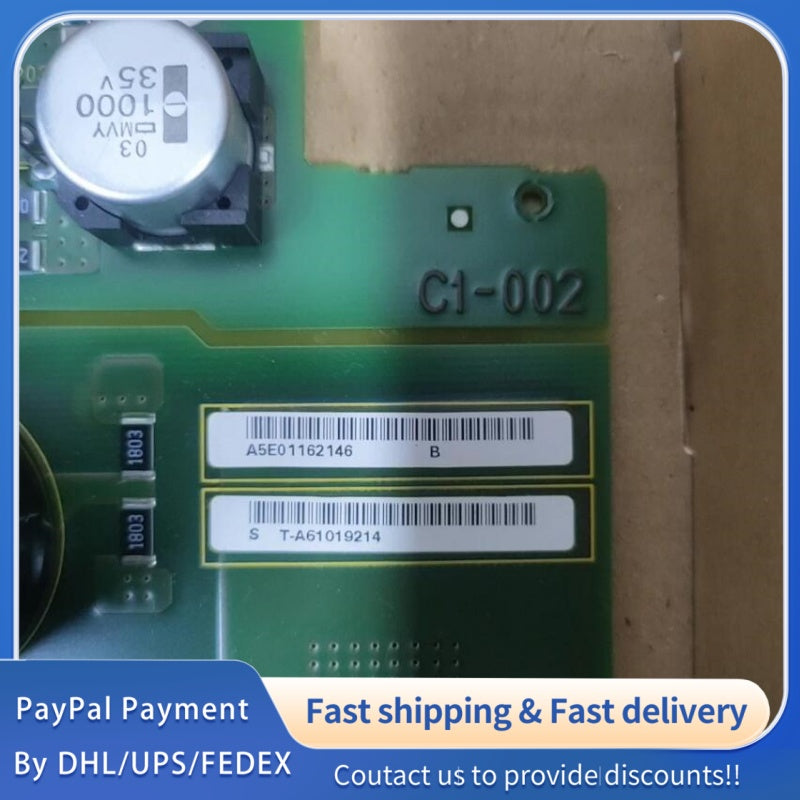

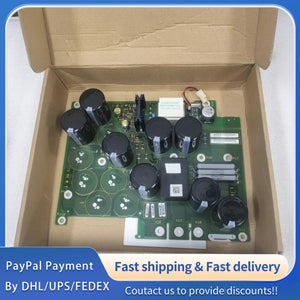

1 PCS new Siemens Control Board A5E01162146 #LYQ007
1 PCS new Siemens Control Board A5E01162146 #LYQ007
1 PCS new Siemens Control Board A5E01162146 #LYQ007
Part Number: A5E01162146; Model: A5E01162146; Product Name: Industrial Control Board (IPC Accessory)
Brand: SIEMENS (A global leader in industrial automation, power generation, and intelligent infrastructure, providing comprehensive solutions for manufacturing, energy, and process industries worldwide. Specialized in industrial control components with high reliability and compatibility.)
Product Status: Original Industrial-Grade Accessory (Compliant with Siemens IPC Series Standards); Product Category: Industrial Personal Computer (IPC) Control Board, serving as a core functional component for Siemens IPC systems, responsible for signal processing, control logic execution and peripheral device coordination.
Core Application: Dedicated to Siemens IPC systems, widely used in industrial control scenarios such as factory automation, intelligent monitoring, process control, and equipment management. It ensures stable operation of IPC systems in harsh industrial environments, supporting data interaction between host and external control devices.
Core Features: High compatibility with Siemens IPC series; Industrial-grade stability and anti-interference performance; Precise signal processing capability; Easy replacement and maintenance (as a standard IPC accessory); Built-in protection mechanisms for harsh industrial conditions; Compliance with international industrial control standards.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance
Power Supply Parameters: Rated Supply Voltage 12 VDC / 24 VDC (Dependent on Matching IPC Model); Supply Voltage Tolerance ±10%; Power Consumption 3.5 W (Max.) at Rated Voltage; No-load Current 120 mA (Typ.) at 24 VDC.
Signal Processing Parameters: Digital Signal Response Time ≤ 1 ms; Analog Signal Conversion Accuracy ±0.1% FS; Supported Signal Type: Discrete Digital Input/Output, Analog Signal (4-20 mA, 0-10 VDC); Number of Configurable I/O Ports: 8 Digital Inputs, 6 Digital Outputs (Configurable via IPC System).
2.2 Communication & Interface Specifications
Communication Compatibility: Seamless Integration with Siemens IPC via Internal Bus Interface; Supports Real-Time Data Exchange with IPC Host Without Additional Protocols; Compatible with Siemens Industrial Software for Parameter Configuration and Status Monitoring.
Interface Specifications: Internal Connection Interface: Board-to-Board Connector (Siemens Standard); Connector Type: Industrial-Grade Gold-Plated Connector (Anti-Oxidation, Low Contact Resistance); Interface Protection: Anti-Vibration Connection Design; No External Communication Port (Dependent on IPC Host Interfaces).
2.3 Protection & EMC Specifications
Protection Functions: Built-in Over-Voltage Protection (Up to 36 VDC); Short-Circuit Protection (Auto-Cutoff When Short-Circuited, Recovery After Fault Removal); ESD Protection Compliant with EN 61000-4-2 (±8 kV Contact, ±15 kV Air); Over-Temperature Protection (Triggered at 85℃).
EMC Compliance: Compliant with EU EMC Directive 2014/30/EU; Electromagnetic Emission EN 55011 (Group 1, Class A); Electromagnetic Immunity EN 61326-1 (Industrial Environment); Suitable for Industrial Environment Pollution Degree 2.
2.4 Environmental & Mechanical Specifications
Environmental Conditions: Operating Temperature -20℃ to 60℃ (-4°F to 140°F); Storage Temperature -40℃ to 85℃ (-40°F to 185°F); Relative Humidity 5% - 95% (Non-Condensing, No Dew Formation); Altitude Up to 2000 m (No Derating Required).
Mechanical Specifications: Mounting Type: IPC Internal Slot Mounting (Siemens Standard IPC Chassis); Housing Material: High-Strength Flame-Retardant PCB (UL 94 V-0); Protection Level: IP20 (When Installed in IPC Chassis, IEC/EN 60529); Dimensions (W×H×D): 100 mm × 160 mm × 15 mm (Typical); Net Weight: 120 g (Typical); Vibration Resistance EN 60068-2-6 (10 Hz - 150 Hz, 0.75 mm Amplitude).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
