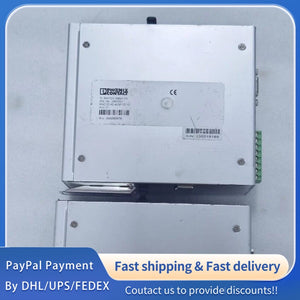

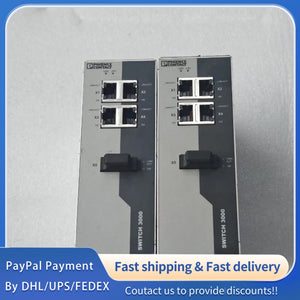

Part Number: FL SWITCH 3004T-FX; Derivative Model: FL SWITCH 3000 Series; Sub-model: Industrial Unmanaged Ethernet Switch (4x Twisted Pair + 1x Fiber Optic Port)
Alternate P/N: N/A (Fully Compatible with Phoenix Contact Industrial Automation Ecosystem, PLCs, HMIs, Industrial Sensors, and Third-party Network Devices)
Brand: Phoenix Contact (Industrial Automation Division, Connection & Network Solutions)
Product Category: Industrial Unmanaged Ethernet Switch (Designed for Stable Data Transmission in Harsh Industrial Environments)
2.1 Power Supply Parameters
Input Voltage: 24VDC (typical); Voltage Tolerance: 18-30VDC; Input Current: ≤120mA (typical operation, full load); Power Consumption: ≤3W (typical, 24VDC input);

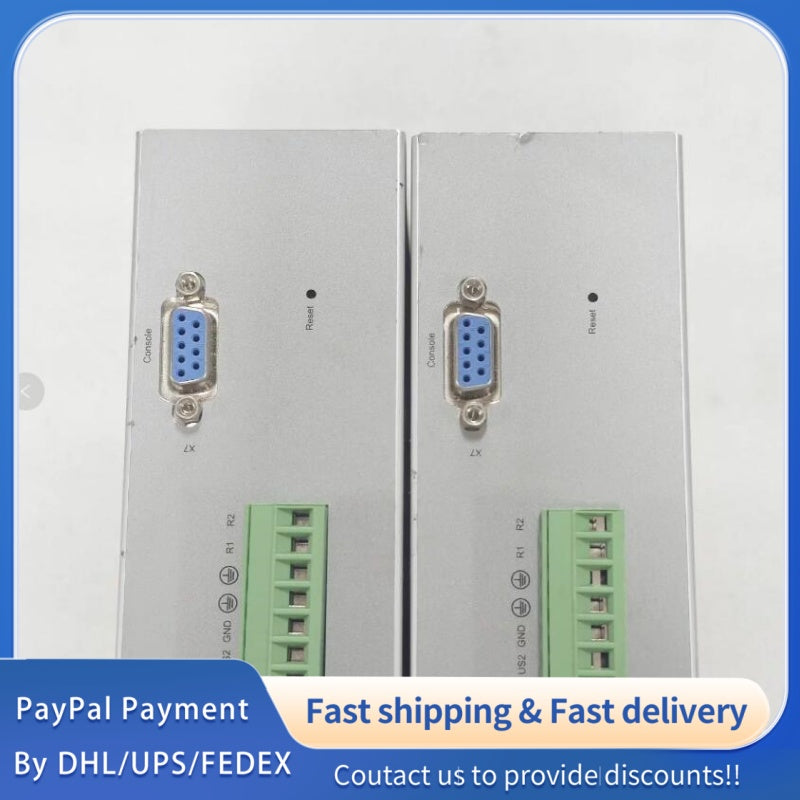

Power Connection: Screw terminal connection; Polarity Protection: Built-in reverse polarity protection to prevent damage from incorrect wiring; Overvoltage Protection: ±2kV surge protection per IEC 61000-4-5 (power port).
2.2 Network Port Specifications
Twisted Pair Ports: 4x 10/100BASE-TX (RJ45 ports); Speed: Auto-negotiation (10Mbps/100Mbps), half-duplex/full-duplex auto-adaptation; Cable Type: Cat.5e or higher twisted pair cable, maximum length 100m;
Fiber Optic Port: 1x 100BASE-FX (SC/ST connector, optional); Wavelength: 850nm (multimode) / 1300nm (singlemode); Transmission Distance: Up to 2km (multimode, 50/125μm fiber) / Up to 20km (singlemode, 9/125μm fiber); Fiber Type: Multimode or singlemode (depending on model);
Switching Capacity: ≥1.2Gbps; Forwarding Rate: ≥900Kpps (wire-speed forwarding); MAC Address Table: 4K entries; Latency: ≤10μs (typical, for 100BASE-TX/FX ports).
2.3 Protection Functions
ESD Protection: ±8kV (contact discharge), ±15kV (air discharge) per IEC 61000-4-2 (network ports); Surge Protection: ±2kV (differential mode), ±4kV (common mode) per IEC 61000-4-5 (network ports);
EMI/EMC Compliance: EN 55032 Class A (emission), EN 61000-4 (immunity) for industrial electromagnetic compatibility requirements; Short Circuit Protection: Built-in short circuit protection for power circuit, automatic shutdown to prevent component damage.
3. Mechanical Specifications
Form Factor: Compact DIN rail mounting design; Housing Material: High-strength plastic (UL 94 V-0 flame retardant); Surface Treatment: Anti-scratch and anti-static finish;
Physical Dimensions (W×H×D): 22.5mm × 100mm × 75mm (DIN rail mounted, excluding connectors); Mounting Type: DIN rail mounting (35mm standard DIN rail); Installation Clearance: ≥10mm on all sides for ventilation;
Weight: ≤200g (net weight, excluding cables and accessories); Indicator Lights: Power (green LED, steady on when powered on), Port Status (green LED per port: steady on for link, blinking for data transmission).
