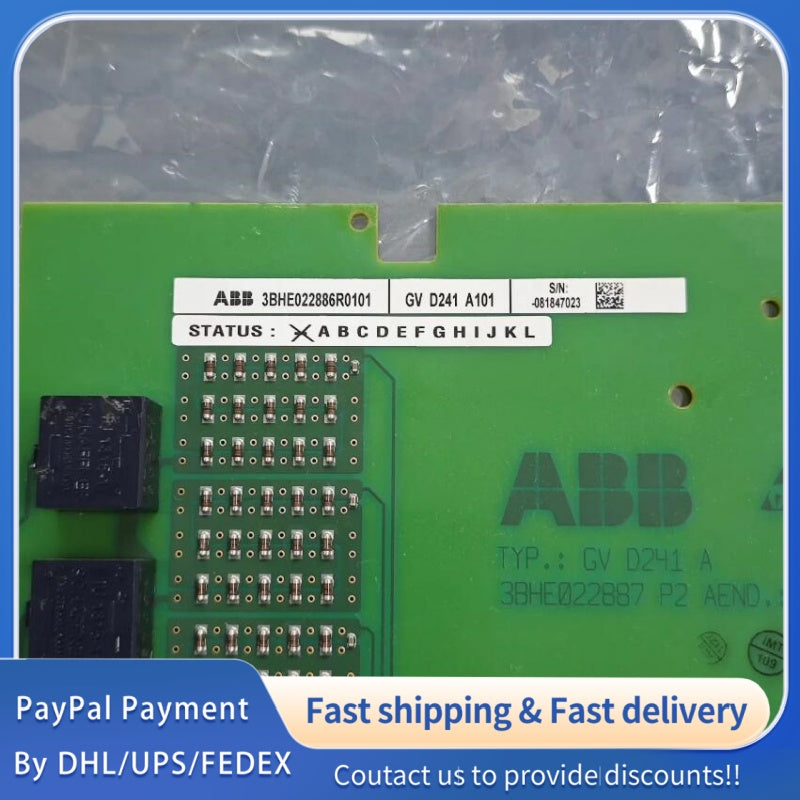

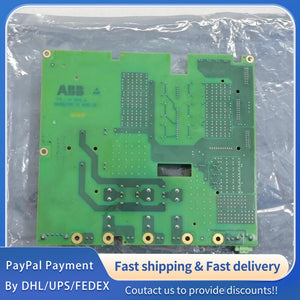

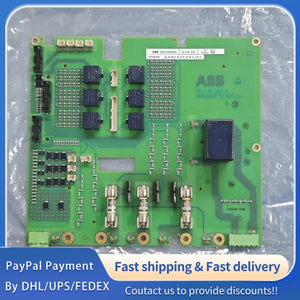

Part Number: 3BHE022886R0101; Product Name: ABB GV D241 A101 Control Board
Brand: ABB; Product Series: GV Series, a high-reliability control board designed for industrial automation control scenarios.
Product Status: Original New Unit (In Stock); Product Category: Industrial Control Board, integrated with logic control, signal processing and equipment coordination functions for high-demand industrial environments.
Core Applications: Power generation equipment, industrial robots, CNC systems, metallurgical machinery, petrochemical control devices, and other equipment requiring stable and precise control performance.
Core Features: High-stability signal processing; Seamless integration with ABB industrial control systems; Excellent anti-interference capability; Wide voltage adaptation range; Built-in multiple protection mechanisms; Compact and rugged design.
2. Hardware Specifications
2.1 Core Control Unit
Processor: 32-bit Industrial-Grade Microprocessor (Single-Core, 600MHz, 256KB L2 Cache); Control Function: Supports logic control, sequential control and real-time signal feedback processing.
Memory: 512MB DDR3 SDRAM (Program & Real-Time Data Storage); Flash Memory: 256MB (Firmware & Configuration Storage, Expandable up to 1GB via external memory module).
Programming Memory: 32KB (User Program Storage); Data Register: 16KB (For High-Speed Data Processing and Temporary Storage).
2.2 I/O & Communication Interfaces
Digital Inputs: 16 Channels (NPN/PNP Configurable, Response Time ≤15μs); Digital Outputs: 8 Channels (Transistor Output, Max Current 1A per Channel, Relay Output Optional).
Analog Inputs: 4 Channels (0-10V DC / 4-20mA, 12-Bit Resolution, Low Noise Design); Analog Outputs: 2 Channels (0-10V DC / 4-20mA Selectable, 12-Bit Resolution).
Communication Interfaces: 1×Ethernet (RJ45, 10/100Mbps, Supports Modbus TCP/IP, Profibus DP); 1×RS232C (DB9, For HMI & Debugging); 1×RS485 (Configurable, Supports Modbus RTU, Half-Duplex).
3. Electrical Specifications
3.1 Power Parameters
Supply Voltage: DC 24V ±15% (Typical Operating Voltage: 22V-26V); Power Consumption: ≤25W (Typical), ≤35W (Max Load).
Inrush Current: ≤10A (At 24VDC, Startup); Power Failure Protection: Built-in, Supports 5ms Temporary Power Interruption, Data Retention Function.
3.2 Protection & Isolation
Insulation Resistance: ≥100MΩ (At 500VDC); Withstand Voltage: 2500VAC for 1 Minute (Between Power Terminal and Ground, Signal Terminal).
Overload Protection: Built-in Over-Current, Over-Voltage, Under-Voltage and Over-Temperature Protection; Signal Isolation: Opto-Isolation for I/O Ports and Communication Interfaces (2500VAC).
