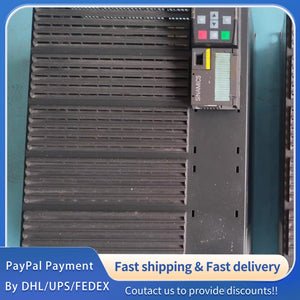

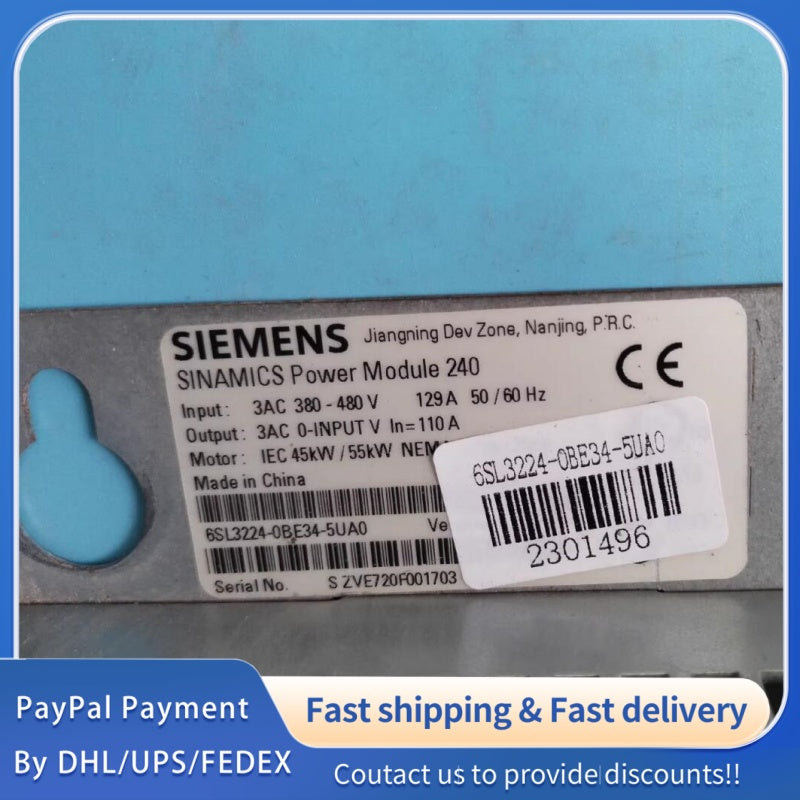

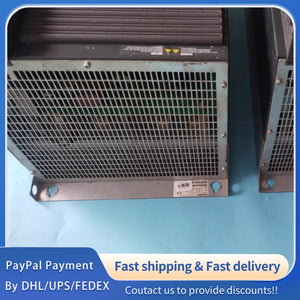

1 PCS used Siemens SINAMICS PM240 Power Module #LYQ007
1 PCS used Siemens SINAMICS PM240 Power Module #LYQ007
| Parameter | Value |
|---|---|
| General | |
| Product Type | SINAMICS G120 PM240 Power Module |
| Filter | Unfiltered |
| Braking Chopper | Integrated |
| Frame Size | FSF |
| Protection Class | IP20 (without Control Unit & BOP) |
| Efficiency Class | IE2 |
| Input | |
| Phases | 3 AC |
| Line Voltage | 380 ... 480 V ±10% |
| Line Frequency | 47 ... 63 Hz |
| Rated Input Current (with reactor) | 115.0 A |
| Rated Input Current (without reactor) | 129.0 A |
| Output | |
| Phases | 3 AC |
| Rated Power (HO, High Overload) | 45 kW / 60 hp |
| Rated Power (LO, Low Overload) | 55 kW / 75 hp |
| Rated Output Current (HO) | 110.0 A |
| Rated Output Current (LO) | 90.0 A |
| Max. Output Current | 180.0 A |
| Output Frequency (Vector) | 0 ... 200 Hz |
| Output Frequency (V/f) | 0 ... 550 Hz |
| Pulse Frequency | 4 kHz (400 V) |
| Overload Capability | |
| HO (High Overload) | 200% for 3 s; 150% for 57 s; 100% for 240 s (cycle 300 s) |
| LO (Low Overload) | 150% for 3 s; 110% for 57 s; 100% for 240 s (cycle 300 s) |
| Performance | |
| Power Factor λ | 0.85 |
| Cos φ | 0.95 |
| Efficiency η | 0.97 |
| Sound Pressure Level (1 m) | 60 dB |
| Power Loss | 1.42 kW |
| Ambient Conditions | |
| Ambient Temp (HO Operation) | 0 ... 50 °C |
| Ambient Temp (LO Operation) | 0 ... 40 °C |
| Storage Temp | -25 ... 55 °C |
| Transport Temp | -40 ... 70 °C |
| Relative Humidity | ≤ 95% RH, no condensation |
| Installation Altitude | ≤ 1000 m (derating above) |
| Mechanical Data | |
| Dimensions (H x W x D) | 634 x 350 x 316 mm |
| Net Weight | 36.0 kg |
| Cooling | Internal air cooling (0.150 m³/s @ 1000 m) |
| Connections (Line/Motor) | M8 bolts, 25 ... 120 mm² |
| Max. Motor Cable Length | Shielded: 50 m; Unshielded: 100 m |
| Standards | |
| Certifications | UL, cUL, CE, C-Tick (RCM), SEMI F47 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
