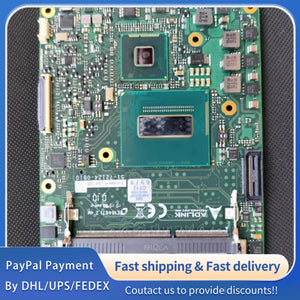

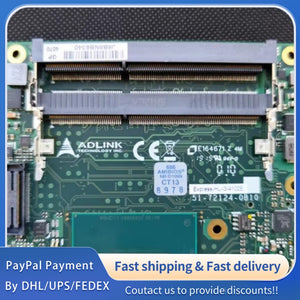

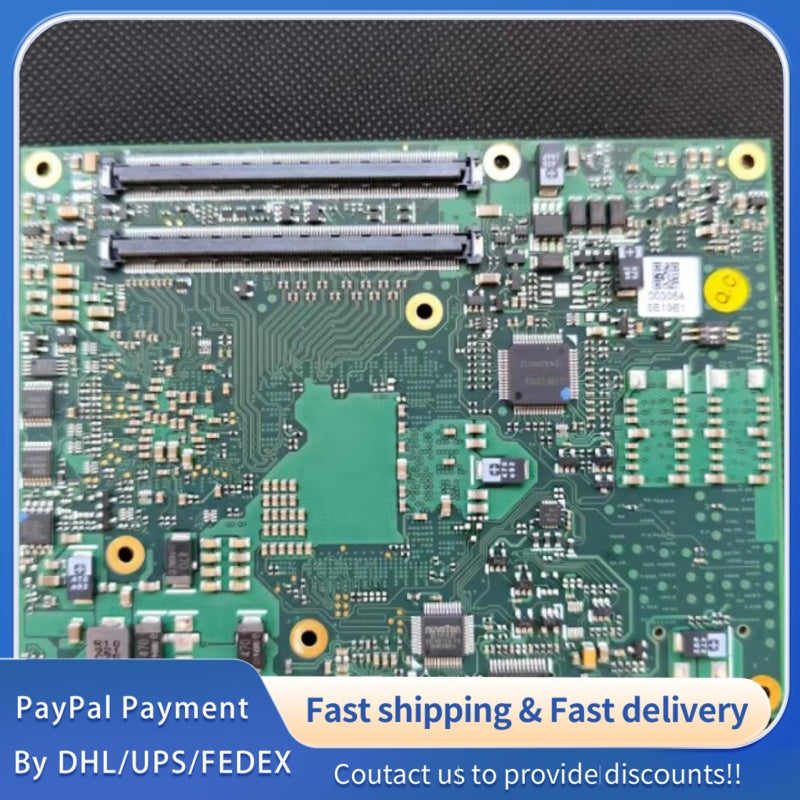

1 PCS used ADLINK Express-HL-i3-4102E (51-72124-0B10) Medical Core Board #LYQ007
1 PCS used ADLINK Express-HL-i3-4102E (51-72124-0B10) Medical Core Board #LYQ007
| Parameter | Specification |
|---|---|
| Part Number | Express-HL-i3-4102E, 51-72124-0B10 |
| Form Factor | COM Express® Basic Size Type 6 (PICMG COM.0 Rev 2.1) |
| Dimensions | 125 mm × 95 mm |
| Processor | Intel® Core™ i3-4102E (4th Gen Haswell, 22nm) |
| CPU Cores/Threads | 2 cores, 4 threads |
| Base Frequency | 1.6 GHz (No Turbo Boost) |
| L3 Cache | 3 MB |
| TDP | 25 W |
| Chipset | Mobile Intel® QM87 Express |
| Memory | Dual‑channel DDR3L 1333/1600 MHz, up to 16 GB (dual SODIMM sockets), ECC support |
| Graphics | Intel® HD Graphics 4600 (Gen 7.5), 3 independent displays via 3× DDI (DP/HDMI/DVI), VGA (300 MHz DAC, up to QXGA 2048×1536), LVDS (single/dual‑channel 18/24‑bit) |
| Ethernet | 1× Gigabit Ethernet (Intel® I217LM), AMT 9.0 support |
| USB | 4× USB 3.0, 4× USB 2.0 |
| SATA | 4× SATA 6 Gb/s |
| PCIe | 1× PCIe x16 (Gen3), 7× PCIe x1 |
| Serial | 2× UART (COM1/2) with console redirection |
| GPIO | 4× GPI, 4× GPO (interrupt capable) |
| TPM | Atmel AT97SC3204 (TPM 1.2) |
| BIOS | AMI EFI, 8 MB SPI, CMOS backup, dual BIOS support |
| Management | SEMA® (Smart Embedded Management Agent): voltage/current monitoring, power sequencing, watchdog, fan control, etc. |
| Power Input | Standard: ATX 12 V ±5% / 5 Vsb ±5%; Wide: 8.5–20 V |
| Operating Temp | Standard: 0°C to +60°C; Extreme Rugged (optional): -40°C to +85°C |
| Humidity | 5–90% RH (operating, non‑condensing); 5–95% RH (storage) |
| Shock/Vibration | IEC 60068‑2‑64, IEC 60068‑2‑27; MIL‑STD‑202F |
| OS Support | Windows 7/8 (32/64‑bit), Linux (32/64‑bit); Extended: WES7/8, VxWorks, QNX |
| Medical Compliance | Designed for medical applications (per ADLINK medical‑grade specs) |
