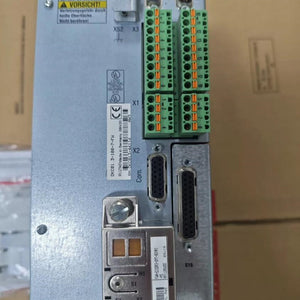

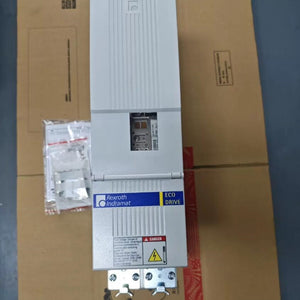

1 PCS USED Bosch Rexroth Drive DKC01.3-100-7-FW (R911279429)#LYQ007
1 PCS USED Bosch Rexroth Drive DKC01.3-100-7-FW (R911279429)#LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Bosch Rexroth (Indramat) |
| Model | DKC01.3-100-7-FW |
| Order No. | R911279429 |
| Series | ECODRIVE03 (DKC Series) |
| Design Version | Version 3 |
| Product Type | AC Servo Drive Controller |
| Electrical Data | |
| Input Voltage (3-phase) | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Nominal DC Bus Voltage | 700 VDC |
| Rated Output Current | 100 A |
| Peak Output Current | 200 A |
| DC Bus Capacitance | 0.15 mF |
| Max. Allowed Overvoltage | 45 V for 1 ms |
| Max. Energy Dissipation | 31 kWs |
| Soft-Start Resistor | 24 Ω |
| Environmental Data | |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | -30 °C to +85 °C |
| Relative Humidity | ≤ 95% (non-condensing) |
| Protection Class | IP20 |
| Installation Altitude | ≤ 1000 m above sea level |
| Mechanical Data | |
| Dimensions (W x H x D) | 210 mm x 360 mm x 32.5 mm |
| Weight | Approx. 4.4 kg |
| Cooling | Natural convection |
| Interfaces & Features | |
| Communication Interfaces | RS232/485, Analog Interface |
| Optional Interfaces | Parallel, Stepper (via DKC01.3-LK-EAK02) |
| Control Modes | Velocity, Torque, Position |
| Motor Compatibility | MKD Series Motors |
| Rotary Field Direction | Clockwise / Counter-Clockwise (selectable) |
