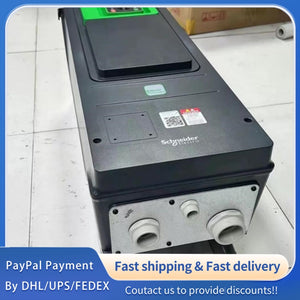

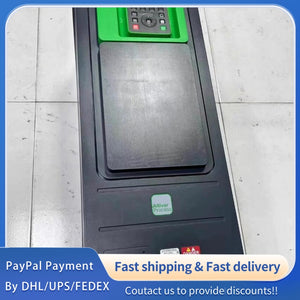

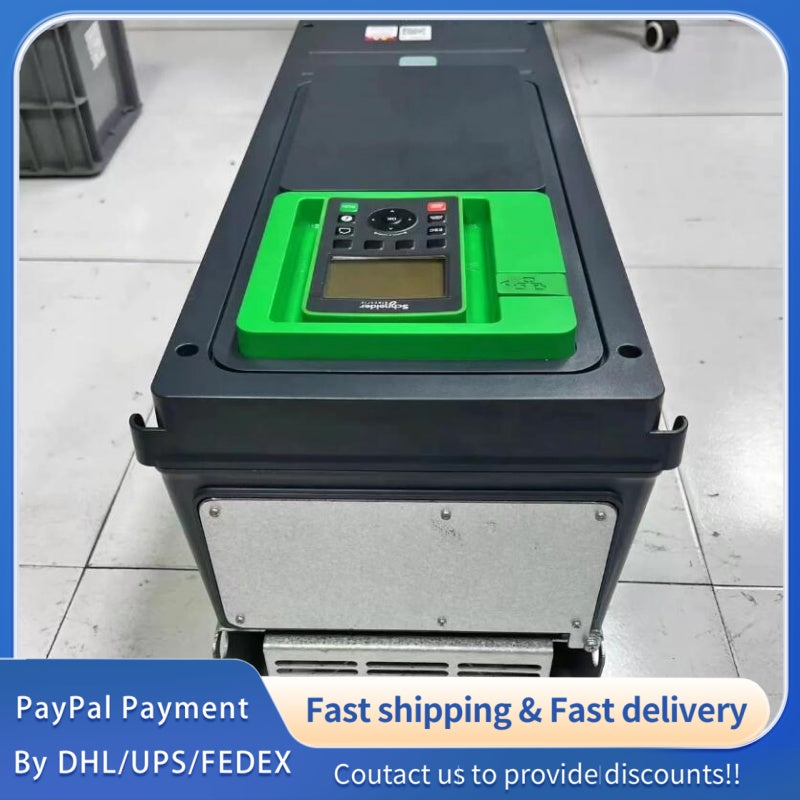

1 PCS Schneider Electric ATV650D18N4 #LYQ007
1 PCS Schneider Electric ATV650D18N4 #LYQ007
| Parameter | Value |
|---|---|
| Product Range | Altivar Process ATV600 |
| Product Type | Variable Speed Drive |
| Application | Process and Utilities |
| Model | ATV650D18N4 |
| Supply Voltage | 380…480 V, 3‑phase |
| Supply Frequency | 50/60 Hz ±5% |
| Motor Power (Normal Duty) | 18.5 kW / 25 HP |
| Motor Power (Heavy Duty) | 15 kW / 20 HP |
| Rated Output Current (I2N) | 39.2 A (normal duty, 4 kHz) |
| Max Output Frequency | 500 Hz |
| Max Output Voltage | ≤ Supply Voltage |
| Nominal Switching Frequency | 4 kHz |
| Switching Frequency Range | 2…12 kHz (adjustable) |
| IP Rating | IP55 |
| Cooling | Forced Convection |
| EMC Filter | Integrated (C2 for ≤50 m, C3 for ≤150 m) |
| Safety Function | STO (Safe Torque Off), SIL 3 |
| Analog Inputs | 3 (AI1, AI2, AI3) |
| Analog Outputs | 2 (AO1, AO2) |
| Digital Inputs | 6 (DI1–DI6) |
| Relay Outputs | 3 (R1: Fault; R2, R3: Configurable) |
| Communication | Modbus TCP, Modbus RTU; Options: Profinet, EtherNet/IP, Profibus DP, CANopen |
| Overload Capacity | 1.1 × In for 60 s (normal); 1.5 × In for 60 s (heavy) |
| Accel/Decel Ramps | 0.01…9999 s (linear, adjustable) |
| Dimensions (W×H×D) | 264 × 678 × 299 mm |
| Weight | Approx. 35 kg |
| Ambient Temp (Operation) | −15…+40 °C (no derating); up to 50 °C (derated) |
| Storage Temp | −40…+70 °C |
| Humidity | 5…95% RH (non‑condensing) |
| Operating Altitude | ≤1000 m (no derating); 1000…4800 m (1% derating per 100 m) |
| Certifications | CE, UL, CSA, DNV‑GL, TÜV |
