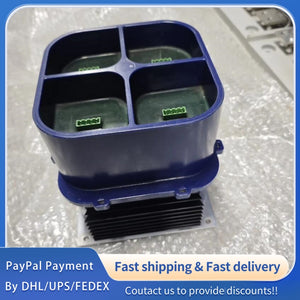

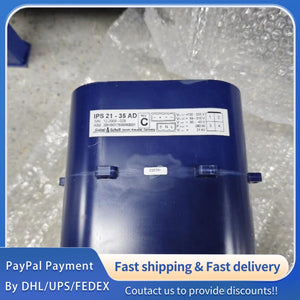

1 PCS used ABB Power Module IPS 21-35 AD #LYQ007
1 PCS used ABB Power Module IPS 21-35 AD #LYQ007
1 PCS used ABB Power Module IPS 21-35 AD #LYQ007
Part Number: IPS 21-35 AD; Product Name: ABB IPS 21-35 AD Series Power Module
Brand: ABB; Product Series: IPS 21 Series, a high-reliability industrial power supply module engineered for stable power conversion and distribution in automation systems.
Product Status: Original New Unit (In Stock); Product Category: Industrial Switching Power Module, designed to provide continuous and precise DC power for industrial control components, sensors, and actuators.
Core Applications: Widely utilized in industrial automation control systems, CNC equipment, robotic workstations, power distribution cabinets, instrumentation, and other fields demanding stable DC power supply.
Core Features: High conversion efficiency; Wide input voltage range; Low ripple and noise; Integrated multi-level protection functions; Compact design for easy integration; Stable performance under harsh industrial conditions.
2. Electrical Specifications
2.1 Input Parameters
Input Voltage Range: Single-phase AC 85V ~ 264V (50/60Hz), compatible with DC 120V ~ 370V; Input Current: Rated 2A, Maximum 3.5A @ Nominal Input Voltage (AC 220V).
Input Protection: Over-Voltage Protection (OVP), Under-Voltage Protection (UVP); Surge Protection: Compliant with IEC 61000-4-5 (±2kV Line to Line, ±4kV Line to Ground); Input Power Factor: ≥ 0.95 @ Full Load (AC 220V, 50Hz).
2.2 Output Parameters
Output Voltage: DC 24V (Adjustable Range: 22.8V ~ 25.2V); Output Current: Rated 35A, Peak 50A (Short-term, ≤ 3s);
Output Ripple & Noise: ≤ 150mVpp (Full Load); Voltage Regulation Accuracy: ±0.5% (Line Regulation), ±1% (Load Regulation); Conversion Efficiency: ≥ 92% @ Full Load (Typical Value).
Dynamic Response Time: ≤ 50ms (Load Change 0% ~ 100%); Hold-Up Time: ≥ 20ms @ AC 220V, Full Load; Remote Sense Function: Supported (compensates for voltage drop in cables).
2.3 Protection Features
Over-Voltage Protection (OVP): 26.5V ~ 28V DC (Hiccup Mode, Auto-Recovery); Over-Current Protection (OCP): 40A ~ 55A (Current Limiting, Hiccup Mode); Short-Circuit Protection (SCP): Output Short-Circuit (Hiccup Mode, Auto-Recovery after Fault Removal);
Over-Temperature Protection (OTP): 85°C ±5°C (Hiccup Mode, Auto-Recovery after Cooling); Reverse Polarity Protection: Output Reverse Connection Protection (Non-Destructive, Fuse Protection);
Additional Protection: Over-Power Protection (OPP), Input Surge Current Limiting, ESD Protection (Compliant with IEC 61000-4-2, ±8kV Contact, ±15kV Air).
3. Environmental Specifications
3.1 Operating Environment
Operating Temperature: -20°C ~ 60°C (Derate 2% per °C above 50°C); Storage Temperature: -40°C ~ 85°C;
Relative Humidity: 5% ~ 95% RH (Non-Condensing); Atmospheric Pressure: 70 kPa ~ 120 kPa;
Vibration Resistance: 10 Hz ~ 500 Hz, 0.5G (X/Y/Z Directions, Continuous Operation); Shock Resistance: 20G (IEC 60068-2-27), 11ms Duration (Half-Sine Wave).
3.2 EMC Compliance
EMC Standards: EN 55032 Class B (Emission); EN 61000-4 Series (Immunity); Compliant with industrial electromagnetic compatibility requirements for power supply equipment.
Protection Degree: IP20 (Module Body); Suitable for panel mounting in control cabinets, providing protection against finger touch and large solid particles.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
