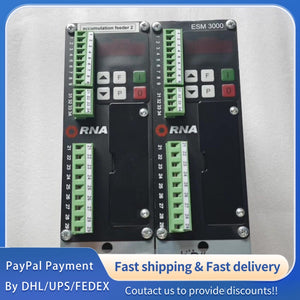

Part Number: ESM 3000; Product Name: RNA ESM 3000 Series Servo Controller
Brand: RNA; Product Series: ESM 3000 Series, designed for high-performance motion control with excellent stability and adaptive capability.
Product Status: Original New Unit (In Stock); Product Category: Industrial Servo Controller, applicable for precise motion regulation of servo motors in automated production systems.
Core Application: Extensively used in CNC machining centers, robotic systems, packaging lines, printing machinery, textile equipment, and other automation fields requiring high-precision motion control.
Core Features: Advanced vector control algorithm; Multiple configurable control modes; Integrated comprehensive protection mechanism; High anti-interference performance; User-friendly operation interface; Compact structure for easy system integration.
2. Electrical Specifications
2.1 Input Parameters
Input Voltage Range: 3-phase AC 380V ~ 480V (50/60Hz); Input Current: Rated 10A, Maximum 15A @ Nominal Input Voltage.
Input Protection: Over-Voltage Protection, Under-Voltage Protection; Surge Protection: Compliant with IEC 61000-4-5 Standard; Input Impedance: ≥ 3kΩ @ 380VAC.
2.2 Output Parameters
Output Voltage: 0 ~ Input Voltage (Proportional to Control Signal); Output Current: Rated 10A, Peak 30A (Short-term, ≤ 2s);
Speed Control Range: 1:10000 (Steady-State Accuracy); Positioning Accuracy: ±0.005 Pulse; Torque Output: Rated 5N·m, Peak 15N·m (Matching RNA Servo Motor);
Control Modes: Position Control (Pulse/Direction, CW/CCW), Speed Control (Analog Voltage 0-10V, Frequency Signal), Torque Control (Analog Voltage ±10V); Command Response Time: ≤ 0.5ms.
2.3 Protection Features
Over-Voltage Protection (OVP): ≥ 650VDC (Shutdown Protection); Under-Voltage Protection (UVP): ≤ 320VDC (Shutdown Protection); Over-Current Protection (OCP): 25A ~ 30A (Current Limiting & Shutdown);
Over-Temperature Protection (OTP): 80°C ±5°C (Shutdown Protection, Auto-Recovery After Cooling); Short-Circuit Protection (SCP): Output Short-Circuit Protection (Non-Destructive); Motor Stall Protection: Adjustable Threshold, Alarm & Shutdown Dual Mode;
Additional Protection: Phase Loss Protection, Motor Overload Protection, Ground Fault Protection, ESD Protection (Compliant with IEC 61000-4-2).
3. Environmental Specifications
3.1 Operating Environment
Operating Temperature: -10°C ~ 50°C; Storage Temperature: -25°C ~ 70°C;
Relative Humidity: 5% ~ 95% RH (Non-Condensing); Atmospheric Pressure: 80 kPa ~ 110 kPa;
Vibration Resistance: 10 Hz ~ 200 Hz, 0.5G (X/Y/Z Directions, Continuous Operation); Shock Resistance: 15G (IEC 60068-2-27), 11ms Duration.
3.2 EMC Compliance
EMC Standards: EN 61800-3 (Emission & Immunity); EN 55011 Class B; IEC 61000 Series; Compliant with Industrial Electromagnetic Compatibility Requirements.
Protection Level: IP21 (Controller Body); Suitable for Panel Mounting in Control Cabinets, Protection Against Dripping Water and Dust.
