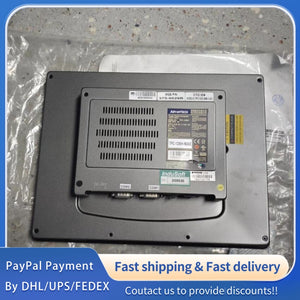

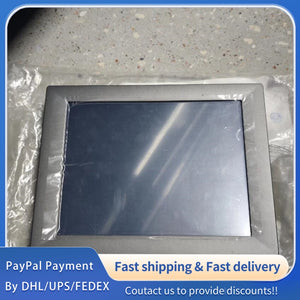

1 PCS used Advantech Industrial Touch Panel TPC-1250H-N2AE #LYQ007
1 PCS used Advantech Industrial Touch Panel TPC-1250H-N2AE #LYQ007
1 PCS used Advantech Industrial Touch Panel TPC-1250H-N2AE #LYQ007
Part Number: TPC-1250H-N2AE; Model: TPC-1250H-N2AE; Product Name: Advantech Industrial Touch Panel PC
Brand: Advantech (A global leader in industrial computing solutions, providing reliable hardware and software for industrial automation, smart manufacturing, and critical control systems)
Product Status: Original Industrial-Grade Touch Panel (In Stock for Industrial Automation, Factory Automation, and Process Control Applications); Product Category: 12.1-inch Fanless Industrial Touch Panel PC, Designed for Stable Operation in Harsh Industrial Environments.
Core Application: Specifically engineered for industrial automation workstations, SCADA system monitoring, factory floor control terminals, process control platforms, and intelligent manufacturing stations. It serves as a human-machine interface (HMI) for real-time data display, operational control, and seamless integration with PLCs, sensors, and upper-level management systems.
Core Features: Fanless Design for Dust-Free Operation; 12.1-inch High-Brightness TFT LCD Display; Multi-Touch Capacitive Touch Screen; Intel® 12th Gen N-Series Processor; Wide Operating Temperature Range; Rich Industrial Interfaces; Anti-Vibration and Anti-Shock Performance; Support for 24/7 Continuous Operation.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Processor & Memory Performance
Processor: Intel® Celeron® N150 Processor (4 Cores/4 Threads, 7nm Process, Base Frequency 1.1GHz, Max Turbo Frequency 3.6GHz, 6MB Smart Cache, 6W TDP);
Memory: 8GB DDR4 SO-DIMM (Expandable up to 16GB, 2666MHz); Storage: 256GB M.2 SATA SSD (Support for 1TB SSD Expansion, Compatible with M.2 2280 Form Factor);
Graphics: Integrated Intel® UHD Graphics (Support for DirectX 12, Maximum Resolution 4K@60Hz, Dual Display Output Support);
Operating System: Windows 10 IoT Enterprise LTSC 2021 (Optional: Linux Ubuntu 22.04 LTS).
2.2 Display & Touch Performance
Display Size: 12.1-inch TFT LCD Panel; Aspect Ratio: 4:3; Resolution: 1024 × 768 (XGA);
Brightness: 450 cd/㎡ (Typical Value), 1000 cd/㎡ (Optional High-Brightness Version for Outdoor Use); Contrast Ratio: 800:1 (Typical);
Viewing Angle: 170° (Horizontal) / 160° (Vertical) (Typical); Backlight Life: ≥ 50,000 Hours (Typical);
Touch Screen: 10-Point Capacitive Touch, 7H Hardness Anti-Scratch Glass, Support for Wet Hand Operation and Glove Touch (Optional AR Coating for Enhanced Wear Resistance); Touch Accuracy: ±2mm.
2.3 Interface & Communication Parameters
USB Interfaces: 4 × USB 3.2 Gen 1 Ports, 2 × USB 2.0 Ports (1 × Power-Output USB Port for Peripheral Power Supply);
Serial Interfaces: 2 × RS-232 Ports, 2 × RS-232/422/485 Ports (Configurable via Software, with Isolation Protection);
Network Interfaces: 2 × 10/100/1000Mbps Gigabit Ethernet Ports (RJ45 Connectors, Support for Wake-on-LAN);
Video Interfaces: 1 × HDMI 2.0 Port, 1 × VGA Port (Dual Display Support); Audio Interfaces: 1 × Mic-In Jack, 1 × Line-Out Jack;
Wireless Communication (Optional): Wi-Fi 6 (802.11ax) + Bluetooth 5.2; Expansion Interface: 1 × Mini PCIe Slot (for 4G/5G Module Expansion).
3. Hardware Configuration & Mechanical Parameters
3.1 Hardware Configuration
Cooling System: Passive Convection Cooling with Aluminum Heat Sink (Fanless Design, Dust-Proof, Suitable for Cleanroom and Dusty Industrial Environments);
Indicator Lights: Power Status Indicator (Green), Storage Activity Indicator (Yellow), Network Activity Indicator (Green/Orange);
Protective Functions: Overvoltage Protection (9-36V DC Input), Overcurrent Protection, Reverse Polarity Protection for Power Input;
Core Components: Industrial-Grade Motherboard, High-Reliability SSD, Gold-Plated Connectors, Anti-Vibration Component Mounting, Reinforced Display Panel for Impact Resistance.
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 304mm × 228mm × 52mm (11.97 inches × 9.0 inches × 2.05 inches); Mounting Type: Panel Mount (Flush Mount), VESA Mount (75×75mm / 100×100mm Compatible);
Weight: ≤ 3.2kg (Net Weight); Housing Material: Anodized Aluminum Alloy Housing (Front Panel IP65 Protection, Rear Panel IP40 Protection);
Front Panel Protection: IP65 (Waterproof and Dustproof), Resistant to Low-Pressure Water Jets and Dust Infiltration; Fixing Method: Anti-Vibration Screws (Compliant with Industrial Mounting Standards).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
