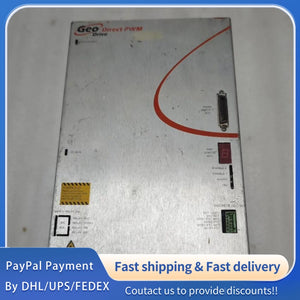

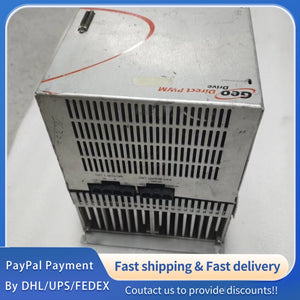

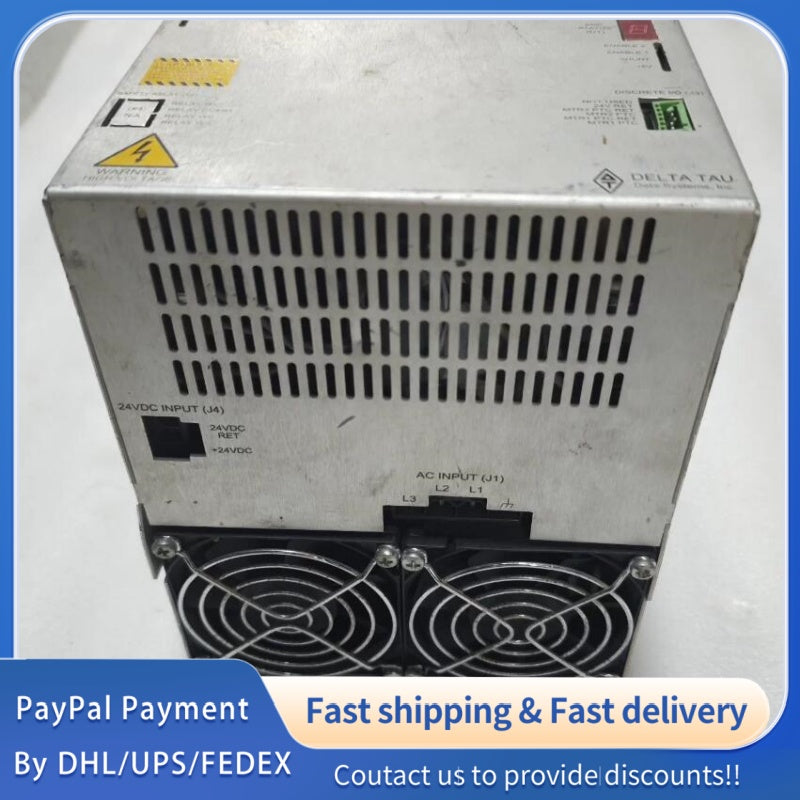

Part Number: GPL3010000; Derivative Model: GPL Series Servo Drive; Sub-model: 30A Continuous Current, 400VAC Three-phase Input, High-power Digital Servo Drive for Heavy-duty Motion Control Applications
Alternate P/N: N/A (Fully Compatible with DELTA TAU PMAC Controllers, High-torque Servo Motors, Multi-feedback Devices and Industrial Automation Ecosystem)
Brand: DELTA TAU (Industrial Motion Control Division, Servo Drive Solutions)
Product Category: Industrial Servo Drive (High-power Digital Servo Amplifier for Heavy-duty Precision Motion Control Systems)
Product Series: DELTA TAU GPL Series (High-performance Servo Drives for Heavy-load Motion Control Projects)
2.1 Power Supply
Input Voltage: 400VAC ±10% (three-phase); Input Frequency: 50/60Hz ±5%; DC Bus Voltage: 560VDC (typical, rectified from AC input); Power Consumption: ≤12kW (typical operation at full load); Idle Power Consumption: ≤80W (no load, input voltage 400VAC).
2.2 Output Parameters
Continuous Output Current: 30A RMS; Peak Output Current: 90A RMS (duration ≤3 seconds); Output Voltage: 0~400VAC (variable frequency, PWM modulation); PWM Frequency: 8kHz (standard), configurable up to 16kHz; Control Resolution: 16-bit for current loop, 16-bit for speed loop, 32-bit for position loop; Encoder Resolution Support: Up to 131072 pulses/rev (configurable via parameters).
2.3 Feedback & Control Performance
Feedback Types: Incremental encoder (A/B/Z phase), absolute encoder (SSI, EnDat 2.2, BiSS C), resolver (standard); Encoder Input Frequency: Up to 4MHz (incremental encoder); Positioning Accuracy: ±1 encoder count (depending on feedback device); Speed Regulation Accuracy: ±0.01% (steady state, no load); Speed Range: 1:10000 (from minimum stable speed to maximum speed); Dynamic Response Time: ≤3ms (current loop), ≤15ms (speed loop).
2.4 Input/Output & Communication Interfaces
Digital Inputs (DI): 12-channel configurable digital input (24VDC, sinking/sourcing selectable); Digital Outputs (DO): 6-channel digital output (open collector, max 1A per channel, 24VDC); Analog Inputs (AI): 4-channel analog input (0~10V DC or ±10V DC, 14-bit resolution); Analog Outputs (AO): 2-channel analog output (0~10V DC, 14-bit resolution, configurable for speed, torque or current feedback).
Communication Interface: 1 × RS-485 port (supports Modbus RTU protocol); 1 × CANopen port (standard, for networked control); 1 × USB port (for configuration, parameter upload/download and debugging); 1 × Ethernet port (standard, supports TCP/IP and EtherCAT for high-speed communication with controllers); 1 × SERCOS III port (optional, for real-time industrial Ethernet control).
