1 PCS new ABB Control Unit MFE180-04AN-05A0-4 #LYQ007
1 PCS new ABB Control Unit MFE180-04AN-05A0-4 #LYQ007
1 PCS new ABB Control Unit MFE180-04AN-05A0-4 #LYQ007

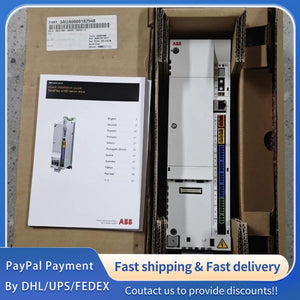

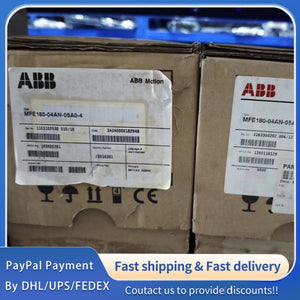

Part Number: MFE180-04AN-05A0-4; Model: MFE180-04AN-05A0-4; Product Name: ABB MFE180 Series Industrial Control Unit
Brand: ABB (A Global Leader in Power and Automation Technology, Specializing in Industrial Control Systems, Power Equipment, and Integrated Automation Solutions for Multiple Industries)
Product Status: Original Industrial-Grade Component (In Stock for Automation Lines, Servo Control Systems, and Precision Machinery Projects); Product Category: High-Performance Servo Control Unit, Designed for Motion Control and Actuator Regulation in Industrial Automation Equipment.
Core Application: Widely applied in robotic welding systems, precision assembly lines, material handling equipment, and servo-driven machinery. It serves as the core control unit for motor torque, speed, and position regulation, coordinating with sensors, servo motors, and upper-level PLC systems to achieve high-precision motion control.
Core Features: Industrial-Grade Stable Operation; High-Precision Motion Control Algorithm; Built-In Motor Calibration Function; Rich Communication Protocol Support; Comprehensive Fault Self-Diagnosis; Modular Design for Easy Integration; Wide Compatibility with ABB Servo Motors and Peripherals.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Operating Voltage: 24V DC ±10% (Control Circuit); 380V AC ±5% (Power Circuit, Three-Phase); Auxiliary Power Output: 24V DC, Maximum Output Current 2A; Total Power Consumption: ≤30W (Under Rated Operating Conditions);
Motor Control Capability: Compatible with 3-Phase AC Servo Motors; Rated Output Current: 4A (Continuous), 12A (Peak, 3 Seconds); Speed Regulation Range: 0-4000 rpm (For Matching Servo Motors);
Torque Control Precision: ±0.5% (At Rated Torque); Positioning Accuracy: ±1 Encoder Count (Depending on Feedback Device); A/D Conversion Performance: 16-Bit Resolution, Conversion Speed 10μS per Channel;
Input Signal Range: 0~10V DC Analog Signal, 4~20mA Current Signal (Selectable via Software); PWM Output Frequency: Up to 100kHz (For Motor Speed Regulation).
2.2 Interface & Communication Parameters
Communication Interfaces: RS-485 (Half-Duplex/Full-Duplex Selectable), Ethernet (RJ45 Port), USB 2.0 (Configuration Port); Protocol Support: Modbus RTU/TCP, ABB Proprietary Communication Protocol, Compatible with IEC 61131-3 Standard;
Motor Feedback Interface: Supports Incremental Encoder (TTL/HTL), Absolute Encoder (EnDat 2.2), Resolver; Encoder Signal Frequency: Up to 1MHz;
I/O Interface: 8 Channels Digital Input (DI, Optically Isolated), 6 Channels Digital Output (DO, Optically Isolated); 2 Channels Analog Input (For Sensor Signals), 1 Channel Analog Output (For Monitoring);
Expansion Interface: 1x SPI Interface, 1x I2C Interface, Support for ABB Standard Expansion Modules and Custom Function Cards to Extend I/O Capacity and Control Functions.
3. Hardware Configuration & Mechanical Parameters
3.1 Hardware Configuration
Cooling System: Passive Convection Cooling (Adapted to Sealed Cabinet Environments); Indicator Lights: Power Indicator (Green), Run Status Indicator (Blue), Fault Alarm Indicator (Red), Communication Status Indicator (Yellow);
Protective Functions: Overcurrent Protection, Overvoltage Protection, Undervoltage Protection, Overheating Protection, ESD Protection (±15kV Contact, ±25kV Air), Motor Stall Protection, Encoder Fault Protection, Short-Circuit Protection;
Core Components: Industrial-Grade Microprocessor, High-Precision Current Sensor, Low-Noise Power Module; Built-In Motor Calibration Function for Commutator Offset Adjustment and Gear Ratio Tuning.
3.2 Mechanical & Installation Parameters
Dimensions (W × D × H): 160mm × 130mm × 35mm (6.30 inches × 5.12 inches × 1.38 inches, Excluding Bracket); Mounting Type: DIN Rail Mount (35mm Standard DIN Rail) or Panel Mount (Optional, Anti-Vibration Bracket Included);
Weight: ≤0.8kg (Net Weight); Housing Material: Aluminum Alloy Case with Anti-Corrosion Coating, FR-4 Circuit Board with Moisture-Proof Treatment; Protection Grade: IP30 (Suitable for Industrial Cabinet Installation);
Terminal Type: Locking Screw Terminals (Power and I/O Interfaces), Plug-in Connectors (Feedback and Communication Interfaces); Fixing Method: Stainless Steel Screws with Anti-Vibration Design for Harsh Industrial Environments.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
